NSN 5210-00-322-6346
Part Details | DIAL INDICATOR
5210-00-322-6346 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Alternate Parts: AA2348, A-A-2348, AA2348 TYAST2, A-A-2348 TYAST2, MILI18422 TY2STA, MIL-I-18422 TY2STA, MILI18422, MIL-I-18422, 7296677, 5210-00-322-6346, 00-322-6346, 5210003226346, 003226346
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | JAN 01, 1963 | 00-322-6346 | 06275 ( INDICATOR, DIAL ) |
REFERENCE DRAWINGS & PICTURES

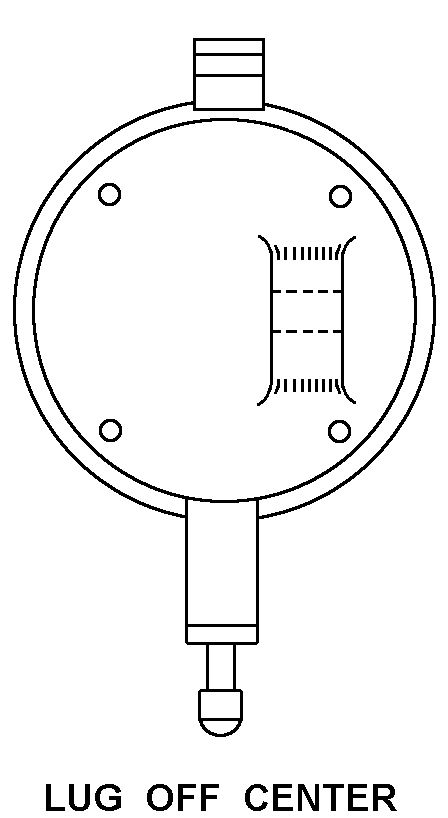

LUG OFF CENTER
REGULAR
Cross Reference | NSN 5210-00-322-6346
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-2348 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-2348 TYAST2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| MIL-I-18422 TY2STA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| MIL-I-18422 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 7296677 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5210-00-322-6346
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.125 INCHES |
| GRADUATION UNIT | 0.00050 INCHES |
| DIAL MARKING | 0-25-0 |
| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | PG ANY ACCEPTABLE |
| MOUNTING STYLE | LUG OFF CENTER |
| CONTACT POINT ACTION TYPE | PLUNGER |
| CONTACT POINT STYLE DESIGNATOR | REGULAR |
| CUSHIONED MOVEMENT FEATURE | INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | BASE W/UPRIGHT POST,CLAMP ATTACHMENT |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 2 STYLE |
