NSN 5210-00-238-1734
Part Details | PLUMB BOB
5210-00-238-1734 A small heavy weight with some means of attaching a line at one end. It is used for finding the vertical or perpendicular line to a horizontal plane.
Alternate Parts: 590G, 590G, AA522161, AA52216-1, AA52216, A-A-52216, MILT16644, MIL-T-16644, 5210-00-238-1734, 00-238-1734, 5210002381734, 002381734
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | JAN 01, 1963 | 00-238-1734 | 05154 ( PLUMB BOB ) |
REFERENCE DRAWINGS & PICTURES

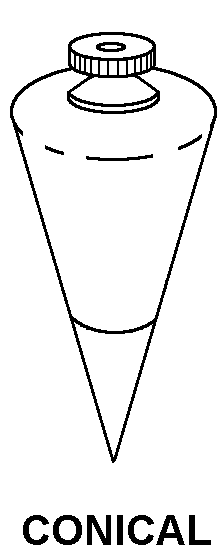

CONICAL
Cross Reference | NSN 5210-00-238-1734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 590G | 65LN0 | APEX TOOL GROUP, LLC |
| 590G | 37163 | COOPER INDUSTRIES INCLUFKIN/COOPER TOOLS DIV |
| AA52216-1 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-52216 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| MIL-T-16644 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5210-00-238-1734
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| BODY TYPE | SOLID |
| STYLE DESIGNATOR | 0 CONICAL |
| WEIGHT | 20.000 OUNCES |
| TOP REMOVABILITY | NONREMOVABLE |
| POINT REMOVABILITY | NONREMOVABLE |
| SPECIAL FEATURES | GRADUATED IN 8THS |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY GRADUATIONS |
