NSN 5210-00-223-9648
Part Details | DIAL INDICATOR
5210-00-223-9648 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Alternate Parts: AA2348, A-A-2348, MILI18422 TY3STC, MIL-I-18422 TY3STC, 711FSAZ, 52925, MILI18422, MIL-I-18422, 5210-00-223-9648, 00-223-9648, 5210002239648, 002239648
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | JAN 01, 1963 | 00-223-9648 | 06275 ( INDICATOR, DIAL ) |
REFERENCE DRAWINGS & PICTURES

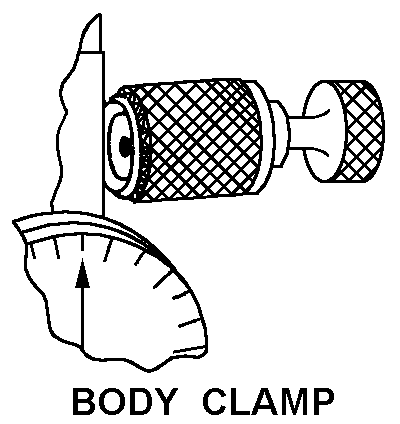

BODY CLAMP
BALL
Cross Reference | NSN 5210-00-223-9648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-2348 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| MIL-I-18422 TY3STC | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 711FSAZ | 57163 | L.S. STARRETT COMPANY, THEDBA COORDINATE MEASURING MACHINE |
| 52925 | 57163 | L.S. STARRETT COMPANY, THEDBA COORDINATE MEASURING MACHINE |
| MIL-I-18422 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5210-00-223-9648
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.030 INCHES |
| GRADUATION UNIT | 0.00100 INCHES |
| DIAL MARKING | 0-15-0 |
| OVERALL DIAMETER | 1.000 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | BODY EXTENDED END |
| MOUNTING STYLE | BODY CLAMP |
| CONTACT POINT ACTION TYPE | SWIVEL |
| CONTACT POINT STYLE DESIGNATOR | BALL |
| POINT LENGTH | 0.250 INCHES NOMINAL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | CLAMP ATTACHMENT |
