NSN 5210-00-186-2946
Part Details | DIAL INDICATOR
5210-00-186-2946 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Alternate Parts: C71, C7I, 27I BAL DIAL, 27I, 2014814, 5210-00-186-2946, 00-186-2946, 5210001862946, 001862946
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | MAR 09, 1973 | 00-186-2946 | 06275 ( INDICATOR, DIAL ) |
REFERENCE DRAWINGS & PICTURES
ADJUSTABLE BRACKET

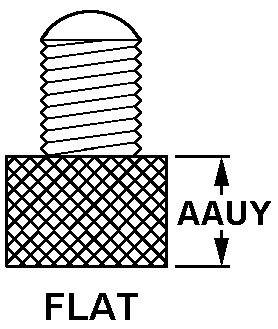

FLAT
Cross Reference | NSN 5210-00-186-2946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C71 | 21938 | MAHR FEDERAL INC. |
| C7I | 21938 | MAHR FEDERAL INC. |
| 27I BAL DIAL | 21938 | MAHR FEDERAL INC. |
| 27I | 21938 | MAHR FEDERAL INC. |
| 2014814 | 21938 | MAHR FEDERAL INC. |
Technical Data | NSN 5210-00-186-2946
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.125 INCHES |
| GRADUATION UNIT | 0.00050 INCHES |
| DIAL MARKING | 0-25-0 |
| OVERALL DIAMETER | 2.250 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | LC ANY ACCEPTABLE |
| MOUNTING STYLE | ADJUSTABLE BRACKET |
| CONTACT POINT ACTION TYPE | PLUNGER |
| CONTACT POINT STYLE DESIGNATOR | FLAT |
| BEARING TYPE | JEWEL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| SPECIAL FEATURES | 271 WITH BALANCED DIAL |
