NSN 5133-00-228-9012
Part Details | AUGER BIT
5133-00-228-9012 A manual or power driven boring tool with a double twist solid center or a single twist hollow or solid center body of one nominal diameter. It is formed into a cutter head at one end, and a shank at the other end. The double twist body type must have either a screw point or a brad point. Excludes BIT, PLUG; and BIT, EXPANSIVE. See also BIT, HOLLOW CHISEL.
Alternate Parts: GGGB383, GGG-B-383, GGGB383 TY1CLO, GGG-B-383 TY1CLO, 5133-00-228-9012, 00-228-9012, 5133002289012, 002289012
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-228-9012 | 01042 ( BIT, AUGER ) |
REFERENCE DRAWINGS & PICTURES

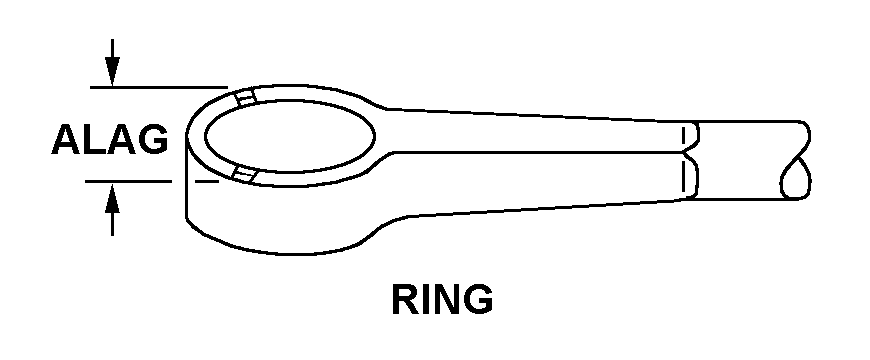

RING
HOLLOW CENTER SINGLE TWIST W/SCREW POINT
Cross Reference | NSN 5133-00-228-9012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-B-383 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-B-383 TY1CLO | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5133-00-228-9012
| Characteristic | Specifications |
|---|---|
| CUTTING END STYLE | HOLLOW CENTER SINGLE TWIST W/SCREW POINT |
| TWIST LENGTH | 15.000 INCHES MINIMUM |
| SHANK STYLE | RING |
| RING HOLE DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL LENGTH | 20.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 1.7500 INCHES |
| FEATURES PROVIDED | HANDLE |
| NONDEFINITIVE SPEC/STD DATA | O CLASS AND 1 TYPE |
