NSN 5120-00-003-5863
Part Details | SPANNER WRENCH
5120-00-003-5863 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: KT119330, 5120-00-003-5863, 00-003-5863, 5120000035863, 000035863
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | MAY 26, 1972 | 00-003-5863 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

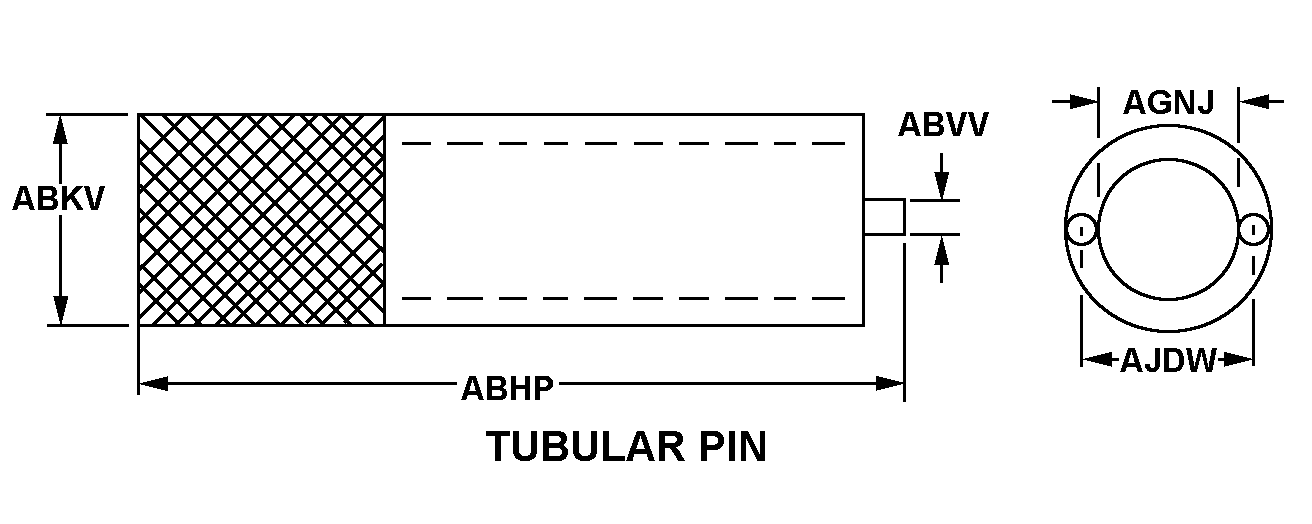

TUBULAR PIN
Cross Reference | NSN 5120-00-003-5863
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KT119330 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
Technical Data | NSN 5120-00-003-5863
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR PIN |
| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| PIN DIAMETER | 0.025 INCHES MINIMUM AND 0.0260 INCHES MAXIMUM |
