NSN 4930-00-827-5970
Part Details | LUBRICATION LINE SWIVEL
4930-00-827-5970 A metal connection designed to be attached between, and to allow angular and/or circular movement between two items such as hose and valve or pipe and tubing in a lubricating line. Excludes swivel type items with more specializied functions, and such items a grease gun couplings, extensions and adapters.
Alternate Parts: 82345, 4930-00-827-5970, 00-827-5970, 4930008275970, 008275970
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | AUG 25, 1967 | 00-827-5970 | 04584 ( SWIVEL, LUBRICATION LINE ) |
REFERENCE DRAWINGS & PICTURES

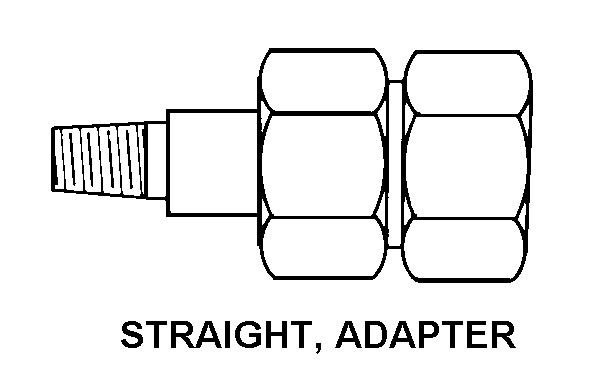

STRAIGHT, ADAPTER
Cross Reference | NSN 4930-00-827-5970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 82345 | 36251 | MCNEIL OHIO CORP |
Technical Data | NSN 4930-00-827-5970
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | STRAIGHT, ADAPTER |
| END CONNECTION THREAD SIZE | 0.500-14 |
| END CONNECTION THREAD SERIES DESIGNATOR | NPT |
