NSN 4930-00-242-2963
Part Details | SELF-FEEDING OILER
4930-00-242-2963 An oil reservoir having a needle valve, wick or other restriction in the discharge passage which delivers lube oil by gravity or capillary action to one or more points of a machine. See also OILER, AIRLINE; INDICATOR, SIGHT, LIQUID; AND CUP, OIL, LUBRICATING.
Alternate Parts: 600B5, 600B, GGGC2794, GGG-C-2794, D399X, D399X, RDF1074, RDF107-4, MILC1258, 4930-00-242-2963, 00-242-2963, 4930002422963, 002422963
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | JAN 01, 1963 | 00-242-2963 | 03180 ( OILER, SELF-FEEDING ) |
REFERENCE DRAWINGS & PICTURES

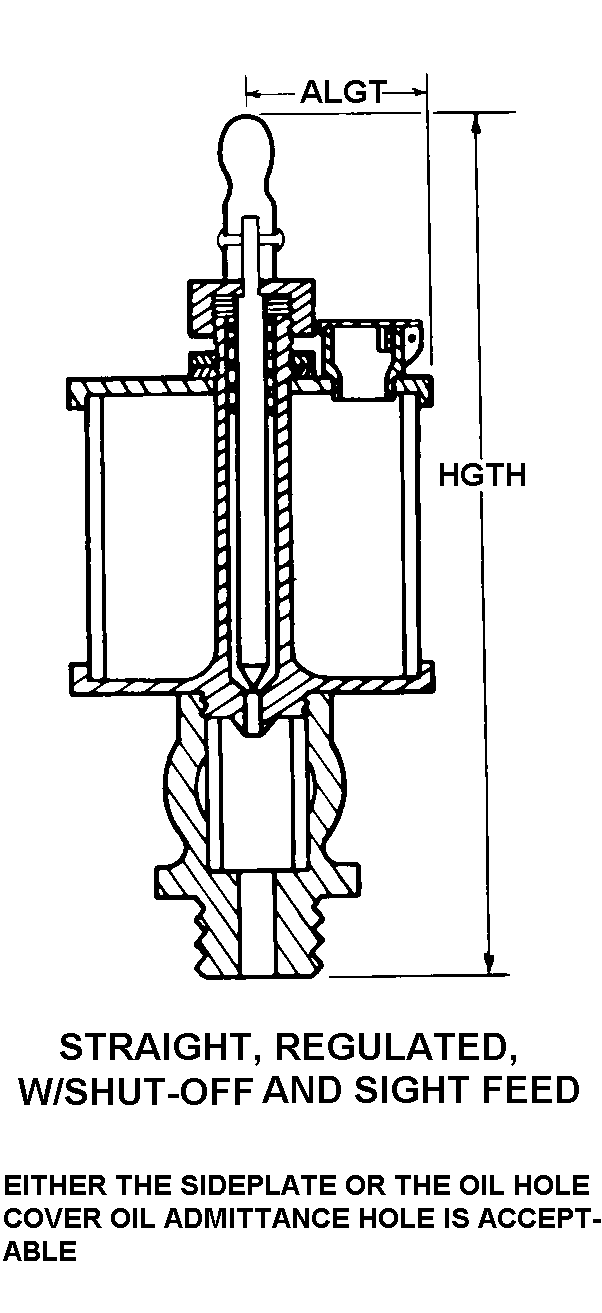

STRAIGHT, REGULATED, W/ SHUT-OFF AND SIGHT FEED
Cross Reference | NSN 4930-00-242-2963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 600B5 | 90655 | BOWEN PRODUCTS CORP |
| 600B | 90655 | BOWEN PRODUCTS CORP |
| GGG-C-2794 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| D399X | 59690 | KOEHRING COLORAIN DIV |
| D399X | 8E499 | KOEHRING CRANES AND EXCAVATORS INCSUB OF NORTHWEST ENGINEERING CO |
| RDF107-4 | 24346 | LDI INDUSTRIES, INCDBA FLODAR FLUID POWER FITTINGS DIV |
| MILC1258 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4930-00-242-2963
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, REGULATED, W/ SHUT-OFF AND SIGHT FEED |
| ASSEMBLY CLEARANCE RADIUS | 1.625 INCHES NOMINAL |
| HEIGHT | 7.812 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| OIL CAPACITY | 10.000 FLUID OUNCES |
| NONDEFINITIVE SPEC/STD DATA | F TYPE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY MATERIAL AND OIL CAPACITY |
