NSN 4930-00-222-2976
Part Details | LUBRICATION LINE SWIVEL
4930-00-222-2976 A metal connection designed to be attached between, and to allow angular and/or circular movement between two items such as hose and valve or pipe and tubing in a lubricating line. Excludes swivel type items with more specializied functions, and such items a grease gun couplings, extensions and adapters.
Alternate Parts: MILL4387, MIL-L-4387, 4930-00-222-2976, 00-222-2976, 4930002222976, 002222976
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | JAN 01, 1963 | 00-222-2976 | 04584 ( SWIVEL, LUBRICATION LINE ) |
REFERENCE DRAWINGS & PICTURES

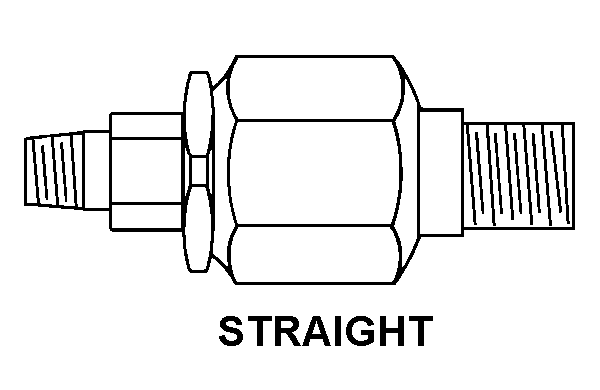

STRAIGHT
Cross Reference | NSN 4930-00-222-2976
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-L-4387 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4930-00-222-2976
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | STRAIGHT |
| END CONNECTION THREAD SIZE | A0.500-27$$A0.250-18 |
| END CONNECTION THREAD SERIES DESIGNATOR | NS AND NPT |
| NONDEFINITIVE SPEC/STD DATA | 7 TYPE AND 1 CLASS AND A STYLE AND 3 SIZE |
