NSN 4930-00-204-2398
Part Details | HAND OILER
4930-00-204-2398 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Alternate Parts: GGGO591, GGG-O-591, GGGO591 TY1CLA, GGG-O-591 TY1CLA, 4930-00-204-2398, 00-204-2398, 4930002042398, 002042398
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | JAN 01, 1963 | 00-204-2398 | 09181 ( OILER, HAND ) |
REFERENCE DRAWINGS & PICTURES
BELL SHAPED BENCH

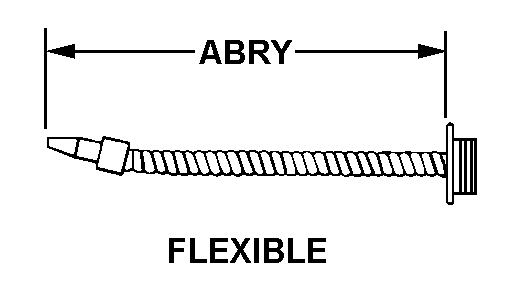

FLEXIBLE
Cross Reference | NSN 4930-00-204-2398
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-O-591 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-O-591 TY1CLA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 4930-00-204-2398
| Characteristic | Specifications |
|---|---|
| SPOUT STYLE DESIGNATOR | FLEXIBLE |
| LENGTH | 7.000 INCHES NOMINAL |
| SPOUT MATERIAL | STEEL |
| SPOUT SURFACE TREATMENT | ANY ACCEPTABLE |
| SPOUT BOTTOM END THREAD PROVISION | THREADED |
| SCREW THREAD LOCATION | EXTERNAL |
| SPOUT CLOSURE CAP | NOT INCLUDED |
| SPOUT TIP REMOVABILITY | NONREMOVABLE |
| CAPACITY | 8.000 OUNCES |
| FEED TYPE | COMPRESSIBLE SURFACE |
| CHECK VALVE CONTROL LEVER | NOT INCLUDED |
| BODY MATERIAL | STEEL |
| BODY SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | BELL SHAPED BENCH |
| BOTTOM DIAMETER | 3.000 INCHES MINIMUM AND 4.000 INCHES MAXIMUM |
| HOLDER BRACKET | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND A CLASS |
