NSN 4930-00-141-8703
Part Details | HAND OILER
4930-00-141-8703 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Alternate Parts: 159, GGG0591, SP2516, 46146PC10, 420191880, 42-0-19-1880, WU2516, 50122, 50-122, 4930-00-141-8703, 00-141-8703, 4930001418703, 001418703
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | JAN 01, 1963 | 00-141-8703 | 09181 ( OILER, HAND ) |
REFERENCE DRAWINGS & PICTURES
BELL SHAPED BENCH

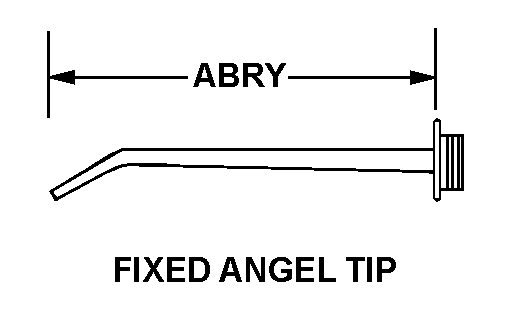

FIXED ANGLE TIP
Cross Reference | NSN 4930-00-141-8703
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 159 | 72798 | EAGLE MFG CO |
| GGG0591 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| SP2516 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 46146PC10 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 42-0-19-1880 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| WU2516 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 50-122 | 77335 | PLEWS, INC.DBA PLEWS EDELMANN |
Technical Data | NSN 4930-00-141-8703
| Characteristic | Specifications |
|---|---|
| SPOUT STYLE DESIGNATOR | FIXED ANGLE TIP |
| LENGTH | 9.000 INCHES NOMINAL |
| SPOUT MATERIAL | STEEL |
| SPOUT SURFACE TREATMENT | ANY ACCEPTABLE |
| SPOUT BOTTOM END THREAD PROVISION | THREADED |
| SCREW THREAD LOCATION | EXTERNAL |
| SPOUT CLOSURE CAP | NOT INCLUDED |
| SPOUT TIP REMOVABILITY | NONREMOVABLE |
| CAPACITY | 16.000 OUNCES |
| FEED TYPE | COMPRESSIBLE SURFACE |
| CHECK VALVE CONTROL LEVER | NOT INCLUDED |
| BODY MATERIAL | STEEL |
| BODY SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | 8 BELL SHAPED BENCH |
| BOTTOM DIAMETER | 3.500 INCHES MINIMUM AND 5.500 INCHES MAXIMUM |
| HOLDER BRACKET | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | I TYPE AND B CLASS |
