NSN 4930-00-106-9839
Part Details | HAND OILER
4930-00-106-9839 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Alternate Parts: 10984, 10-984, GZ985, GZ-985, 984, 10985, 10-985, 4930-00-106-9839, 00-106-9839, 4930001069839, 001069839
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | JUL 19, 1968 | 00-106-9839 | 09181 ( OILER, HAND ) |
REFERENCE DRAWINGS & PICTURES

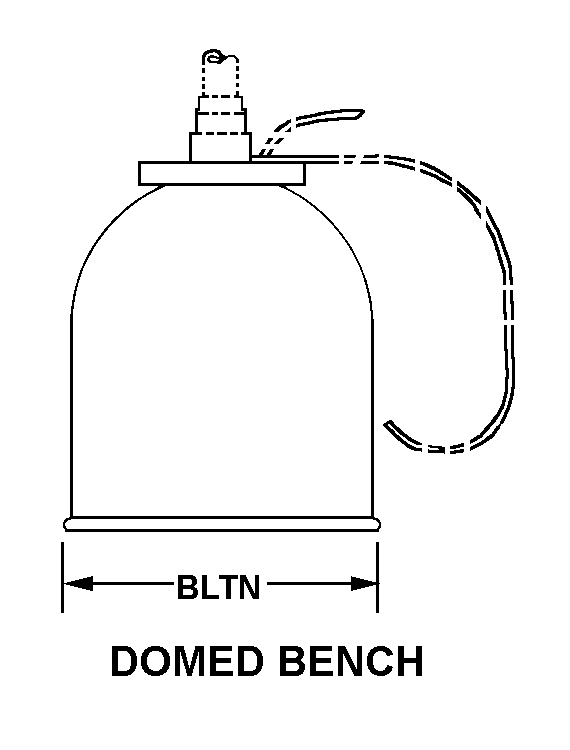

DOMED BENCH
Cross Reference | NSN 4930-00-106-9839
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-984 | 72653 | GC/WALDOM INC |
| GZ-985 | 72653 | GC/WALDOM INC |
| 984 | 72653 | GC/WALDOM INC |
| 10-985 | 72653 | GC/WALDOM INC |
Technical Data | NSN 4930-00-106-9839
| Characteristic | Specifications |
|---|---|
| LENGTH | 0.438 INCHES MINIMUM AND 4.500 INCHES MAXIMUM |
| SPOUT MATERIAL | METAL |
| SPOUT BOTTOM END THREAD PROVISION | UNTHREADED |
| SPOUT CLOSURE CAP | INCLUDED |
| CAP ATTACHMENT FEATURE | INCLUDED |
| SPOUT TIP REMOVABILITY | NONREMOVABLE |
| CAPACITY | 0.500 OUNCES |
| FEED TYPE | COMPRESSIBLE SURFACE |
| CHECK VALVE CONTROL LEVER | NOT INCLUDED |
| BODY MATERIAL | PLASTIC |
| BODY STYLE | DOMED BENCH |
| BOTTOM DIAMETER | 0.750 INCHES NOMINAL |
| HOLDER BRACKET | NOT INCLUDED |
