NSN 4930-00-072-9988
Part Details | HAND OILER
4930-00-072-9988 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Alternate Parts: 66, 4930-00-072-9988, 00-072-9988, 4930000729988, 000729988
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | JAN 01, 1963 | 00-072-9988 | 09181 ( OILER, HAND ) |
REFERENCE DRAWINGS & PICTURES

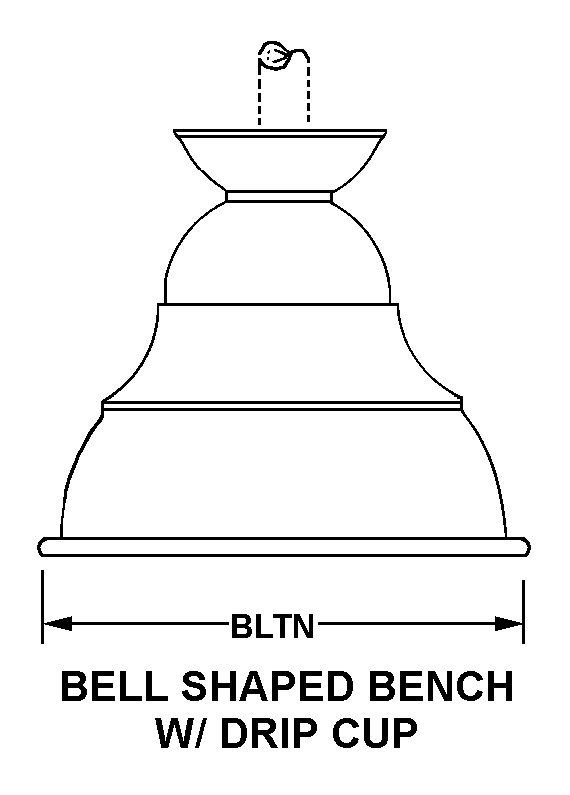

BELL SHAPED BENCH W/DRIP CUP
Cross Reference | NSN 4930-00-072-9988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66 | 72798 | EAGLE MFG CO |
Technical Data | NSN 4930-00-072-9988
| Characteristic | Specifications |
|---|---|
| LENGTH | 4.500 INCHES NOMINAL |
| SPOUT MATERIAL | BRASS |
| SPOUT BOTTOM END THREAD PROVISION | THREADED |
| SCREW THREAD LOCATION | INTERNAL |
| SPOUT CLOSURE CAP | NOT INCLUDED |
| SPOUT TIP REMOVABILITY | REMOVABLE |
| CAPACITY | 6.000 OUNCES |
| FEED TYPE | FORCED AND PRESSURE CREATED BY INTERNAL PUMP |
| BODY MATERIAL | BRASS |
| BODY STYLE | 2 BELL SHAPED BENCH W/DRIP CUP |
| BOTTOM DIAMETER | 2.375 INCHES NOMINAL |
| HOLDER BRACKET | NOT INCLUDED |
