NSN 4820-00-028-7034
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4820-00-028-7034 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: U6251DITEM1, R6309XPC2183713, R6309XPC21-83713, 83713, 83713, 511948243816PC2183713, 5119-4824-3816PC21-83713, 4820-00-028-7034, 00-028-7034, 4820000287034, 000287034
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-028-7034 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

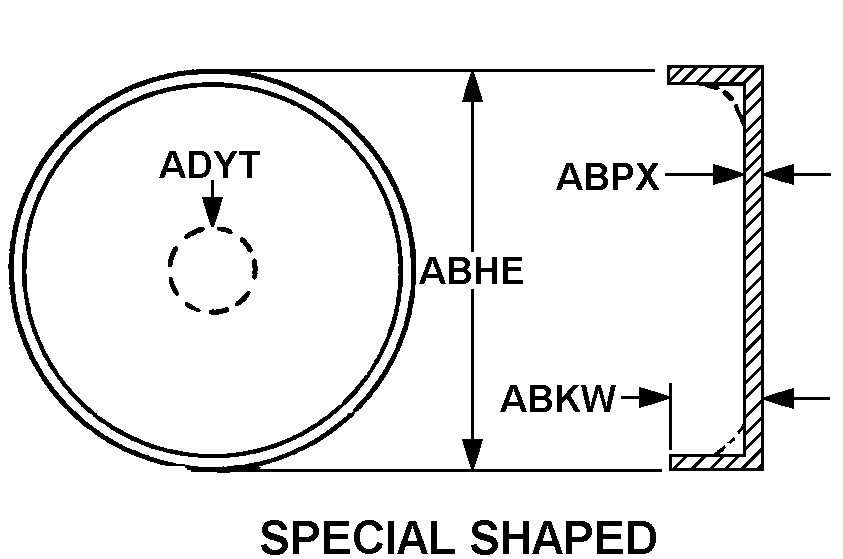

REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPED
Cross Reference | NSN 4820-00-028-7034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U6251DITEM1 | 38056 | ASHCROFT INC. |
| R6309XPC21-83713 | 38056 | ASHCROFT INC. |
| 83713 | 38056 | ASHCROFT INC. |
| 83713 | 57756 | KOMDRESCO CANADA INC |
| 5119-4824-3816PC21-83713 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4820-00-028-7034
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.172 INCHES NOMINAL |
