NSN 4820-00-024-1407
Part Details | VALVE DISK
4820-00-024-1407 An item of various shapes (usually circular, conical, cylindrical, or rectangular) used to prevent or regulate the flow of liquids or gases through the valve. May include a retainer, screw, holder, and the like.
Alternate Parts: E470PC4, 541015884PC4, 54101-58-84PC4, 541015884PC4, 54101-58-84PC4, 4820-00-024-1407, 00-024-1407, 4820000241407, 000241407
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-024-1407 | 35224 ( DISK, VALVE ) |

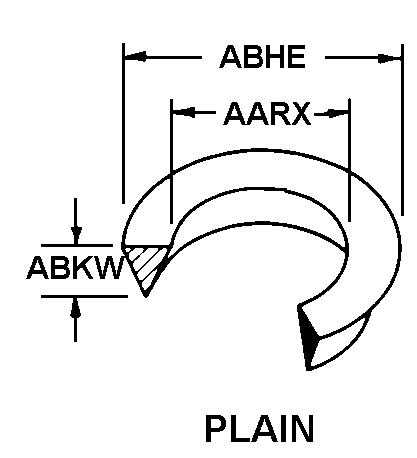

REFERENCE DRAWINGS & PICTURES
PLAIN
Cross Reference | NSN 4820-00-024-1407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| E470PC4 | 33547 | KIELEY AND MUELLER INCSUB OF JOHNSON CONTROLS INC |
| 54101-58-84PC4 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 54101-58-84PC4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4820-00-024-1407
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| STYLE DESIGNATOR | PLAIN |
| OUTSIDE DIAMETER | 1.047 INCHES NOMINAL |
| OVERALL HEIGHT | 0.188 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | T$P |
