NSN 4820-00-007-3458
Part Details | POPPET DRAIN COCK
4820-00-007-3458 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Alternate Parts: 703730410, 7037304-10, 4820-00-007-3458, 00-007-3458, 4820000073458, 000073458
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
48 | JUL 07, 1972 | 00-007-3458 | 16989 ( COCK, POPPET DRAIN ) |
REFERENCE DRAWINGS & PICTURES

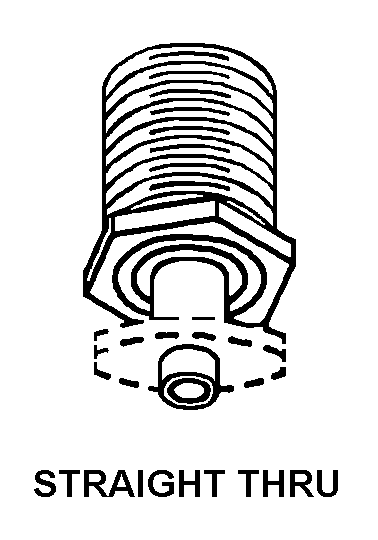

STRAIGHT THRU
Cross Reference | NSN 4820-00-007-3458
Part Number | Cage Code | Manufacturer |
---|---|---|
7037304-10 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
Technical Data | NSN 4820-00-007-3458
Characteristic | Specifications |
---|---|
SURFACE TREATMENT | PASSIVATE |
STYLE DESIGNATOR | STRAIGHT THRU |
FLOW CONTROL DEVICE | POPPET |
VALVE OPERATION METHOD | AUTOMATIC |
RENEWABLE SEAT RING TYPE | PRESSED-IN |
