NSN 4820-00-006-0066
Part Details | VALVE SEAT
4820-00-006-0066 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.
Alternate Parts: S1091R, 5728107, 5728107, 57281-07, S1091R, 4820-00-006-0066, 00-006-0066, 4820000060066, 000060066
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 14, 1972 | 00-006-0066 | 22113 ( SEAT, VALVE ) |

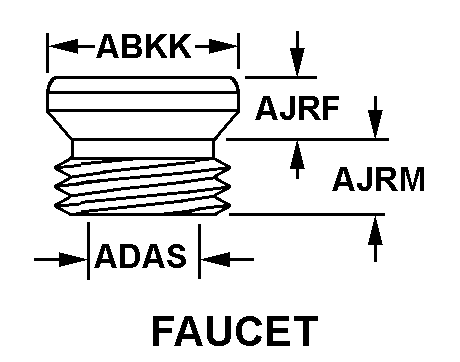

REFERENCE DRAWINGS & PICTURES
FAUCET
Cross Reference | NSN 4820-00-006-0066
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S1091R | 2X264 | ALL-SAFE INC. |
| 5728107 | 80830 | AMERICAN STANDARD INC |
| 57281-07 | 80830 | AMERICAN STANDARD INC |
| S1091R | 77628 | RADIATOR SPECIALTY COMPANY |
Technical Data | NSN 4820-00-006-0066
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FAUCET |
| FLANGE DIAMETER | 0.585 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.359 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.185 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 0.258 INCHES NOMINAL |
| SEATING SURFACE SHAPE | FLAT |
