NSN 4730-00-061-0412
Part Details | TUBE UNION
4730-00-061-0412 A straight tube fitting capable of being taken apart and reassembled. It permits disconnection and connection of tubing or tube fittings without disturbing the end connections or the rest of the line.
Alternate Parts: HS5116SS0004, 4U316, 45WM563, TF1901090, TF190-1090, 4U316, 87728204, 8772820-4, 10300887, CV0166003, CV0166-003, 2062181PK001, 2062181PK-001, 2062181PK, 2D62181PK001, 2D62181PK-001, 44HBZSS, 4-4HBZ-SS, 44HBXSS, 4-4HBX-SS, SS4006, SS-400-6, TF1901090, TF190-1090, AI4USS, AI4U-SS, ISSD4U, 4006316, 400-6-316, SS4006316, SS400-6-316, SS4006, SS-400-6, SS4006, SS-400-6, SS41U, SS-4-1U, TF1901090, TF190-1090, 4730-00-061-0412, 00-061-0412, 4730000610412, 000610412
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-061-0412 | 03788 ( UNION, TUBE ) |
REFERENCE DRAWINGS & PICTURES

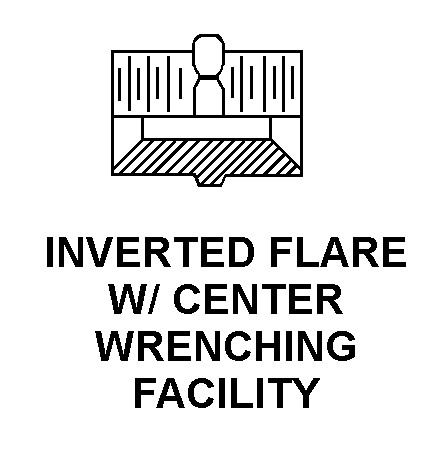

INVERTED FLARE W/ CENTER WRENCHING FACILITY
Cross Reference | NSN 4730-00-061-0412
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS5116SS0004 | 8V613 | BOEING COMPANY, THEDBA BOEING |
| 4U316 | 28968 | CIRCOR INSTRUMENTATION TECHNOLOGIES,INC. |
| 45WM563 | A0998 | DRASS GALEAZZI U.T. SRL |
| TF190-1090 | K1464 | GOODRICH CONTROL SYSTEMS LTD T/AGOODRICH ENGINE CONTROL SYSTEMS |
| 4U316 | 01355 | J R DOUGLASS COMPANY |
| 8772820-4 | 36024 | LIBBY POWER SYSTEMS LLC |
| 10300887 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
| CV0166-003 | 22915 | NORTHROP GRUMMAN CORPELECTRONIC SYSTEMS DEFENSIVE SYSTEM |
| 2062181PK-001 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 2062181PK | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 2D62181PK-001 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 4-4HBZ-SS | 54938 | PARKER-HANNIFIN CORPORATIONDBA INSTRUMENTATION PRODUCTS DIV |
| 4-4HBX-SS | 54938 | PARKER-HANNIFIN CORPORATIONDBA INSTRUMENTATION PRODUCTS DIV |
| SS-400-6 | 5A292 | RADEMACHER INCDBA CINCINNATI VALVE & FITTING CO |
| TF190-1090 | U4271 | ROLLS-ROYCE CONTROLS AND DATASERVICES LIMITED |
| AI4U-SS | 79926 | SSP FITTINGS CORP |
| ISSD4U | 79926 | SSP FITTINGS CORP |
| 400-6-316 | 3T9T9 | SWAGELOK COMPANY |
| SS400-6-316 | 3T9T9 | SWAGELOK COMPANY |
| SS-400-6 | 3T9T9 | SWAGELOK COMPANY |
| SS-400-6 | KD2D2 | SWAGELOK SCOTLAND |
| SS-4-1U | 14971 | TYLOK INTERNATIONAL INC. |
| TF190-1090 | U6454 | ULTRA ELECTRONICS LTD,ULTRAELECTRONICS PRECISION AIR AND |
Technical Data | NSN 4730-00-061-0412
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INVERTED FLARE W/ CENTER WRENCHING FACILITY |
| NOMINAL OVERALL LENGTH | 1.031 INCHES |
| FURNISHED ITEMS AND QUANTITY | 2 SHORT COUPLING NUT AND 4 FERRULE SLEEVE |
| SPECIAL FEATURES | TUBE UNION |
