NSN 4730-00-054-2572
Part Details | TUBE COUPLING NUT
4730-00-054-2572 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Alternate Parts: 4730000542572, 203755, 203755, MS391964, MS39196-4, 8 120111B, J2468120111B, J2468-120111B, J246, 8 120111B, 203755, 203755, 5174056, 343680, 4730-00-054-2572, 00-054-2572, 4730000542572, 000542572
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 30, 1967 | 00-054-2572 | 03859 ( NUT, TUBE COUPLING ) |

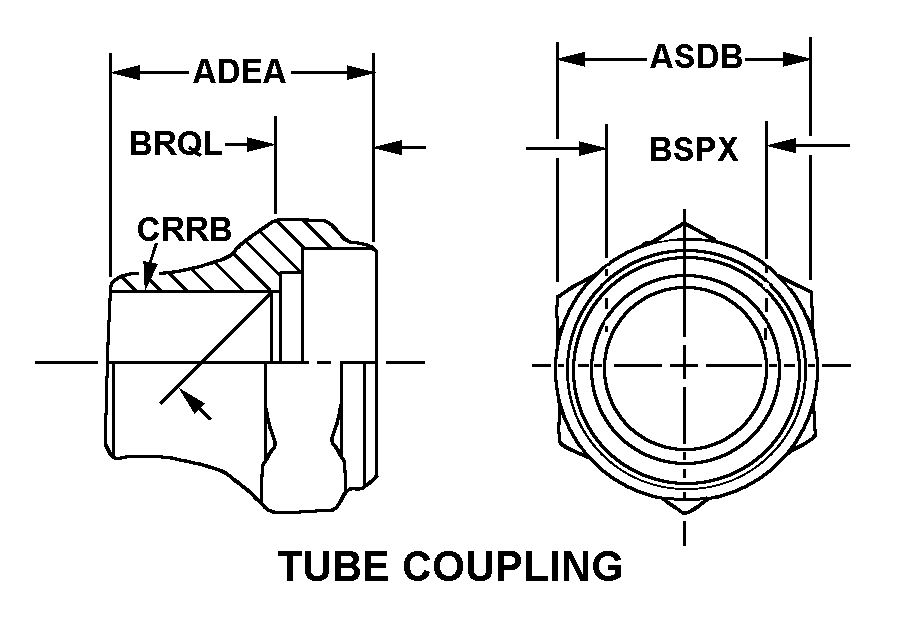

REFERENCE DRAWINGS & PICTURES
TUBE COUPLING
Cross Reference | NSN 4730-00-054-2572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730000542572 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 203755 | 27996 | HEIL ENVIRONMENTAL INDUSTRIES |
| 203755 | 29885 | HYDE CORP |
| MS39196-4 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 8 120111B | 93061 | PARKER-HANNIFIN CORPORATIONDBA FLUID SYSTEM CONNECTORS DIVISION |
| J2468-120111B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J246 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 8 120111B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 203755 | 58141 | STRICK TRAILER CO |
| 203755 | 60528 | TRAILMOBILE INCSUB OF THE PULLMAN CO |
| 5174056 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 343680 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
Technical Data | NSN 4730-00-054-2572
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 0.687 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD PITCH DIAMETERS | +0.6550 TO +0.6606 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | TUBE COUPLING |
| NUT HEIGHT | 1.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.813 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.500 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.507 INCHES NOMINAL |
| SEAT ANGLE | 20.00 DEGREES NOMINAL |
| FABRICATION METHOD | |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.500 INCHES |
| SPECIFICATION/STANDARD DATA | 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 5 FIGURE |
