NSN 4730-00-054-2571
Part Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-00-054-2571 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Alternate Parts: 4730000542571, M5391974, M539197-4, MS391974, MS39197-4, J2468120115B, J2468-120115B, J246, 8 120115B, 4730-00-054-2571, 00-054-2571, 4730000542571, 000542571
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 30, 1967 | 00-054-2571 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
REFERENCE DRAWINGS & PICTURES

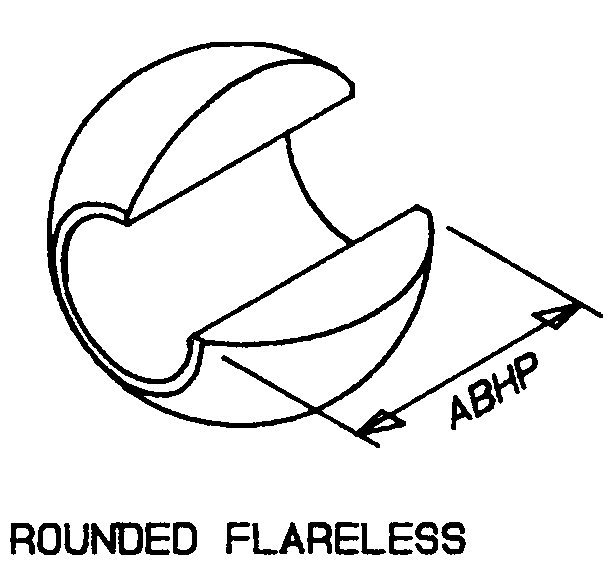

ROUNDED FLARELESS
Cross Reference | NSN 4730-00-054-2571
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730000542571 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| M539197-4 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS39197-4 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| J2468-120115B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J246 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 8 120115B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 4730-00-054-2571
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 844 |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | ROUNDED FLARELESS |
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 4 FIGURE |
