NSN 4730-00-052-1843
Part Details | TUBE FITTING FLARED SLEEVE
4730-00-052-1843 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Alternate Parts: W5165X6, 5165X6, W5165X6, 5165X6, 4730-00-052-1843, 00-052-1843, 4730000521843, 000521843
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-052-1843 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

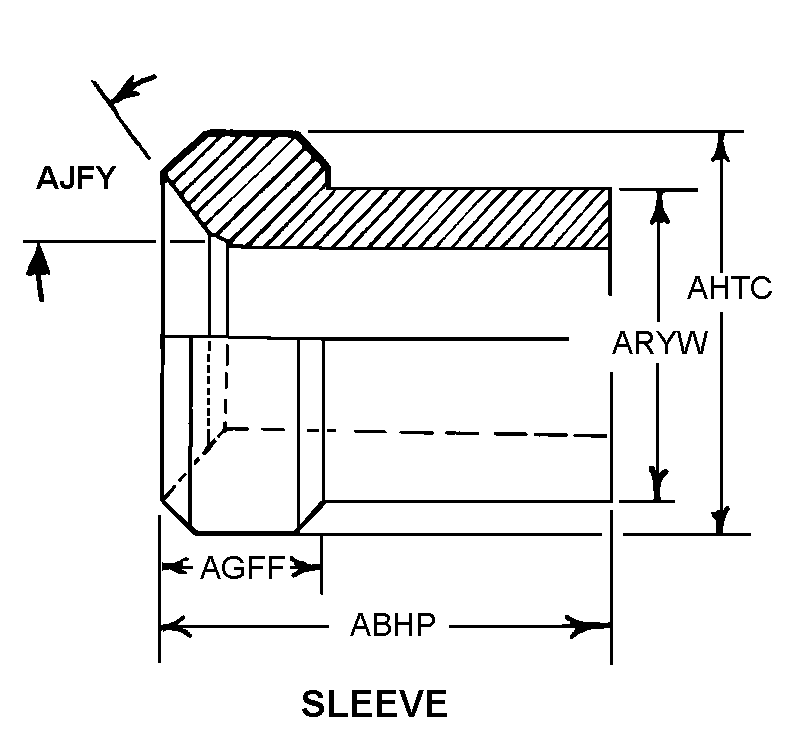

REFERENCE DRAWINGS & PICTURES
SLEEVE
Cross Reference | NSN 4730-00-052-1843
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W5165X6 | 79470 | DANA CORPWEATHERHEAD DIV |
| 5165X6 | 79470 | DANA CORPWEATHERHEAD DIV |
| W5165X6 | 01276 | EATON-AEROQUIP INCDIV FLUID CONNECTORS PRODUCTS |
| 5165X6 | 01276 | EATON-AEROQUIP INCDIV FLUID CONNECTORS PRODUCTS |
Technical Data | NSN 4730-00-052-1843
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PHOSPHATE |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | SLEEVE |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| FLANGE WIDTH | 0.170 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 0.437 INCHES NOMINAL |
