NSN 4720-00-011-8586
Part Details | AIR DUCT HOSE
4720-00-011-8586 A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic.
Alternate Parts: FLX2001 16004805, 108946621, 10894662-1, 4720-00-011-8586, 00-011-8586, 4720000118586, 000118586
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | APR 18, 1967 | 00-011-8586 | 11116 ( HOSE, AIR DUCT ) |
REFERENCE DRAWINGS & PICTURES
ROUND

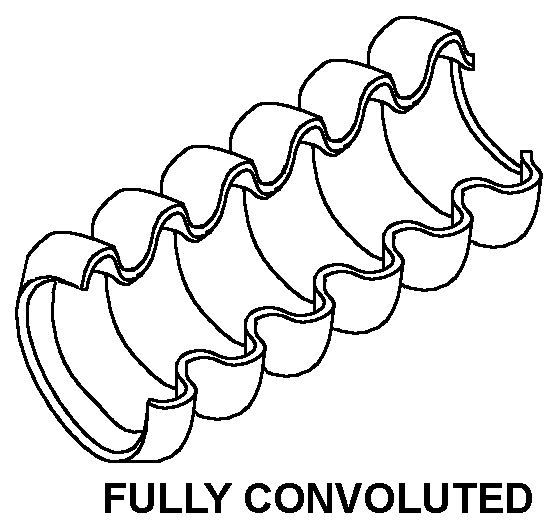

FULLY CONVOLUTED
Cross Reference | NSN 4720-00-011-8586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FLX2001 16004805 | 16632 | FLEXFAB, LLC |
| 10894662-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4720-00-011-8586
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FULLY CONVOLUTED |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| WALL THICKNESS | 0.040 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | RL12.000 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | 16.0 POUNDS PER SQUARE INCH |
| EXTERNAL OPERATING PRESSURE | 5.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | OZONE RESISTANT |
