NSN 4510-01-049-7443
Part Details | WATER MIXING VALVE
4510-01-049-7443 A valve having one discharge connection and separate hot and cold inlet connections in one body. It is designed to mix water to a desired temperature.
Alternate Parts: WH13X62, 4510-01-049-7443, 01-049-7443, 4510010497443, 010497443
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | OCT 23, 1977 | 01-049-7443 | 30193 ( VALVE, WATER MIXING ) |
REFERENCE DRAWINGS & PICTURES
TEE GIVE "ADQL" AND "ADQM" ONLY WHEN FLANGED ALL ENDS
PLAIN

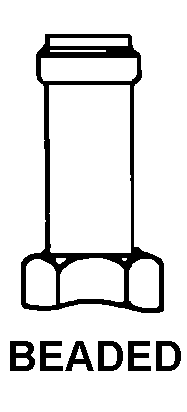

BEADED
PLAIN
BEADED
PLAIN
BEADED
PLAIN
BEADED
Cross Reference | NSN 4510-01-049-7443
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WH13X62 | 93217 | GENERAL ELECTRIC COPRODUCTS SERVICE SALES |
Technical Data | NSN 4510-01-049-7443
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1 TEE GIVE "ADQL" AND "ADQM" ONLY WHEN FLANGED ALL ENDS |
| CENTER TO CENTER DISTANCE | 1.500 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC, POLYVINYL CHLORIDE |
| SEAT MATERIAL | PLASTIC, POLYVINYL CHLORIDE |
| FLOW CONTROL DEVICE | W ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL HOSE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.750 INCHES NOMINAL |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | NOT IDENTICAL WITH FIRST OR SECOND END |
| THIRD END CONNECTION TYPE | UNTHREADED EXTERNAL HOSE |
| THIRD END STYLE DESIGNATOR | BEADED |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
| USAGE DESIGN | EXPOSED PIPE |
