NSN 4420-01-269-8005
Part Details | INDUSTRIAL FLUID COOLER
4420-01-269-8005 An apparatus designed to lower the temperature of a fluid by bringing it into proximity with another fluid of lower temperature so that heat transfer is effected by conduction through the walls of separating chambers. Excludes air conditioning equipment, refrigeration equipment, and radiators.
Alternate Parts: 1199470001, 119947-0001, 4420-01-269-8005, 01-269-8005, 4420012698005, 012698005
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | DEC 22, 1987 | 01-269-8005 | 04041 ( COOLER, FLUID, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

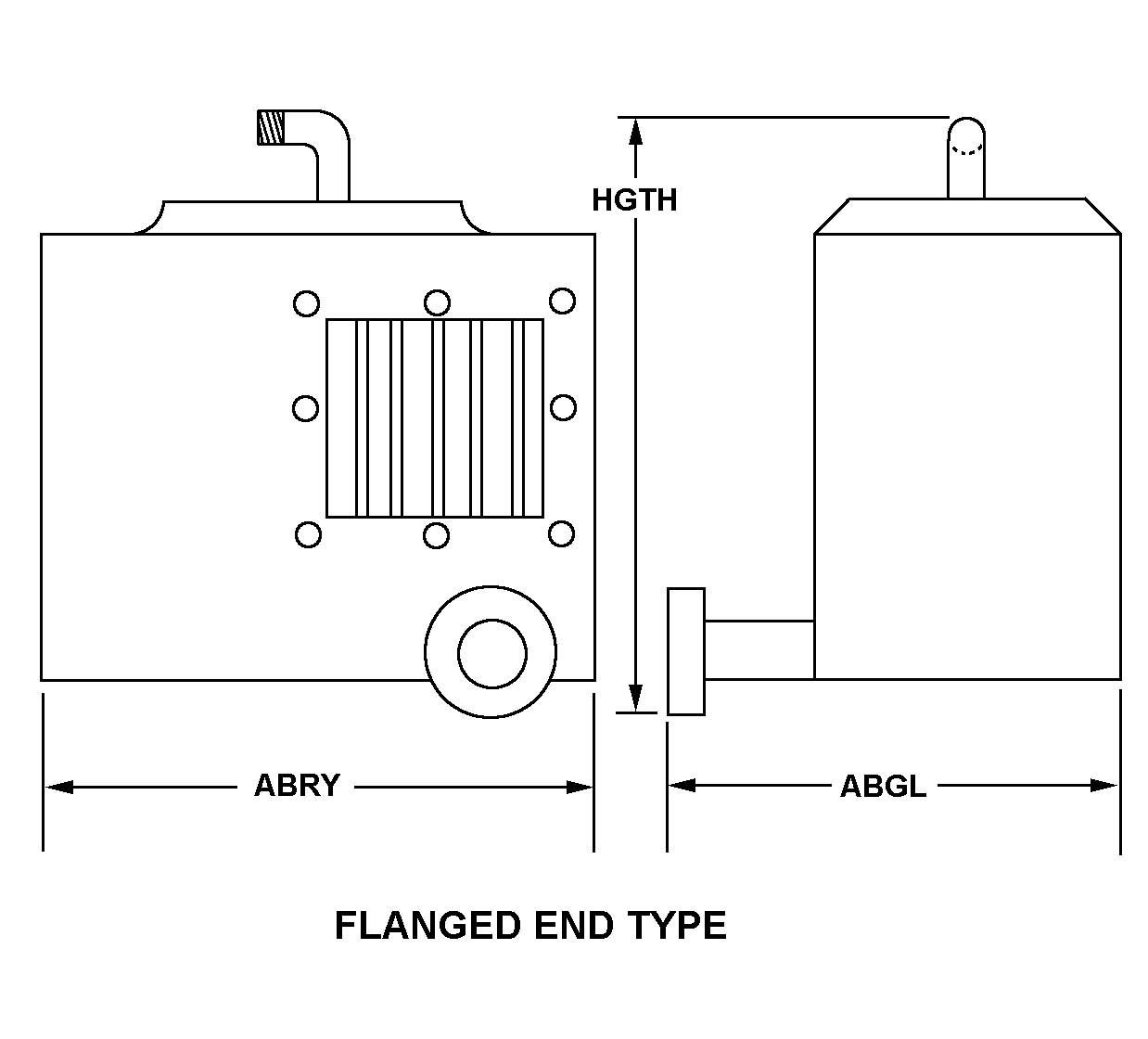

FLANGED END TYPE
Cross Reference | NSN 4420-01-269-8005
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 119947-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
Technical Data | NSN 4420-01-269-8005
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLANGED END TYPE |
| WIDTH | 21.900 INCHES NOMINAL |
| LENGTH | 29.300 INCHES NOMINAL |
| HEIGHT | 25.500 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| SPECIAL FEATURES | MODIFIED FROM 4420012601088,W/CONNECTION BOX,PIPE AND TUBE FITTINGS,MISC HARDWARE |
| END ITEM IDENTIFICATION | B-1B ACFT |
