NSN 4420-01-246-5243
Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-246-5243 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 313520582001, 3-135-2-05-820-01, 313520582001, 3-135-2-05-820-01, 4420-01-246-5243, 01-246-5243, 4420012465243, 012465243
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | DEC 13, 1986 | 01-246-5243 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

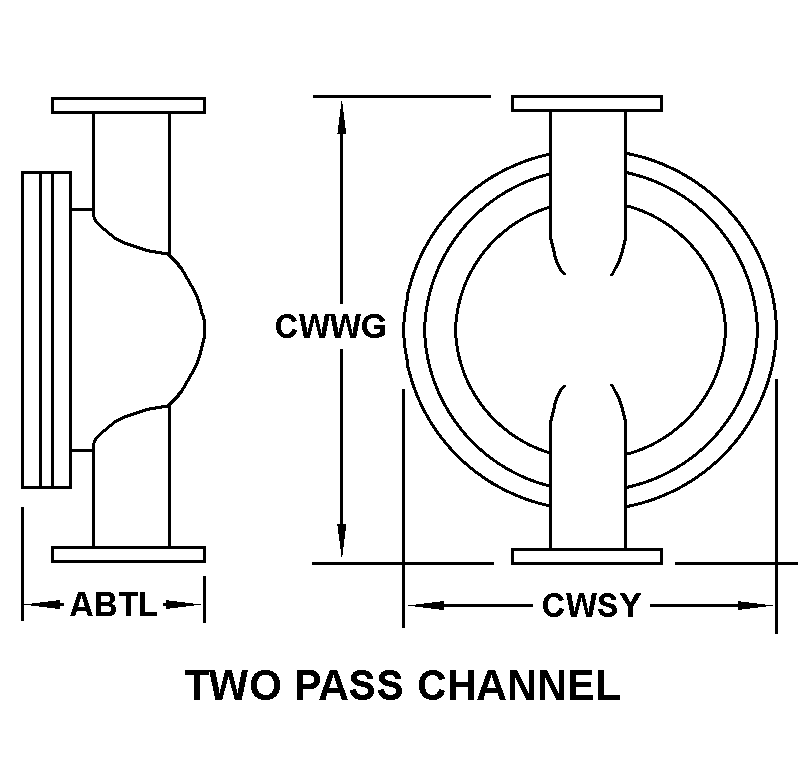

TWO PASS CHANNEL
Cross Reference | NSN 4420-01-246-5243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-135-2-05-820-01 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-135-2-05-820-01 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-246-5243
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TWO PASS CHANNEL |
| DIAMETER | 7.250 INCHES NOMINAL |
| LENGTH | 3.594 INCHES NOMINAL |
| HEIGHT | 8.500 INCHES NOMINAL |
| FLOW TYPE | TWO PASS |
