NSN 4420-01-235-1393
Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-235-1393 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 313020629910, 3-130-2-06-299-10, 313020629910, 3-130-2-06-299-10, 4420-01-235-1393, 01-235-1393, 4420012351393, 012351393
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | JUN 25, 1986 | 01-235-1393 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

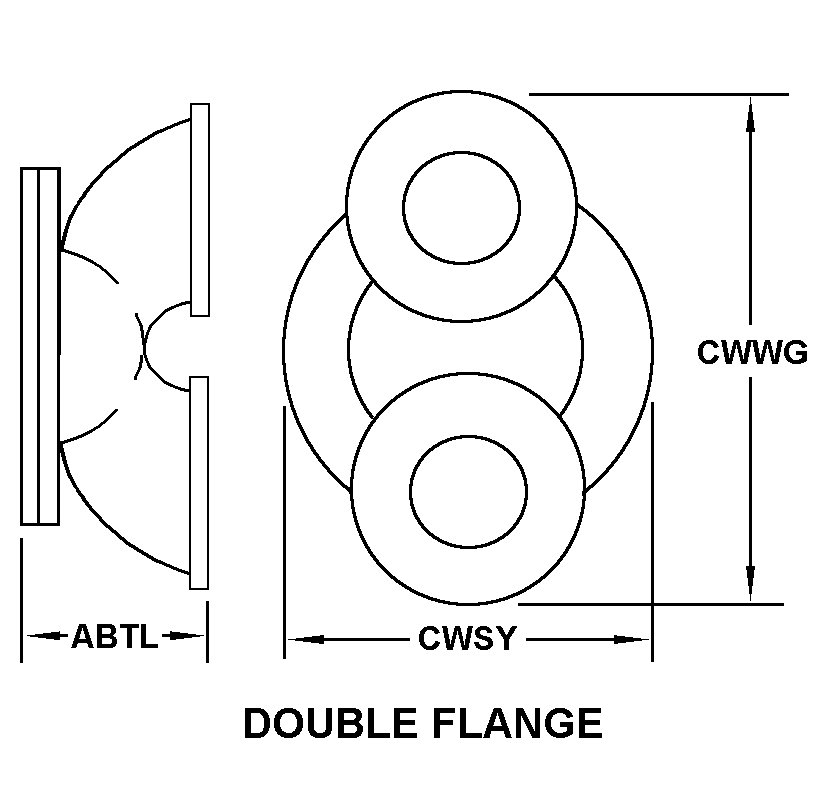

DOUBLE FLANGE
Cross Reference | NSN 4420-01-235-1393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-130-2-06-299-10 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-130-2-06-299-10 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-235-1393
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE FLANGE |
| DIAMETER | 8.250 INCHES NOMINAL |
| LENGTH | 6.625 INCHES NOMINAL |
| HEIGHT | 8.250 INCHES NOMINAL |
| FLOW TYPE | TWO PASS |
