NSN 4210-00-174-1350

Part Details | FIRE FIGHTING TRUCK

4210-00-174-1350 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.

Alternate Parts: 9010, 90-10, TYPE0 10, 4210-00-174-1350, 00-174-1350, 4210001741350, 001741350

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
42JAN 01, 196300-174-135003254 ( TRUCK, FIRE FIGHTING )
REFERENCE DRAWINGS & PICTURES

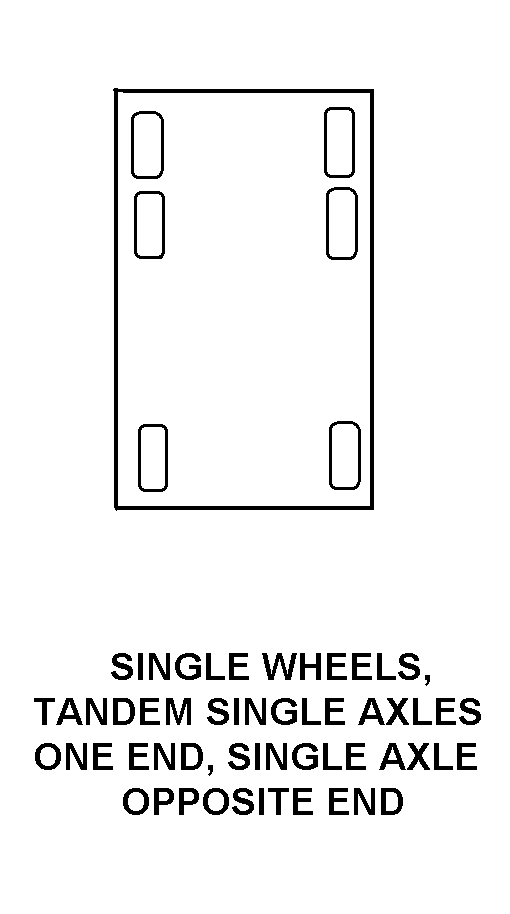

SINGLE WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE AXLE OPPOSITE END

TRUCK,FIRE FIGHTING | 4210-00-174-1350, 001741350
Cross Reference | NSN 4210-00-174-1350
Part Number Cage Code Manufacturer
90-1080049DEPARTMENT OF THE AIR FORCE
TYPE0 1080049DEPARTMENT OF THE AIR FORCE
Technical Data | NSN 4210-00-174-1350
Characteristic Specifications
DESIGN TYPE CRASH
EXTINGUISHING AGENT FOR WHICH DESIGNED FOG AND FOAM
PUMP TYPE CENTRIFUGAL
PUMP CAPACITY300.0 GALLONS PER MINUTE
MOUNTING POSITION MIDSHIP
PUMP DRIVE TYPE AUXILIARY ENGINE
WATER TANK QUANTITY1
TANK CAPACITY600.0 GALLONS
CHEMICAL TANK QUANTITY1
CHEMICAL TANK CAPACITY20.0 GALLONS
CHEMICAL TYPE CHLOROBROMOMETHANE LIQUID
AERIAL LADDER NOT INCLUDED
WHEEL ARRANGEMENT STYLE SINGLE WHEELS, TANDEM SINGLE AXLES ONE END, SINGLE AXLE OPPOSITE END
FRONT WHEEL DRIVE FEATURE INCLUDED
CHASSIS SIZE DESIGNATION 6X6
WHEELBASE SIZE165.000 INCHES
CAB LOCATION AHEAD OF ENGINE
CAB DESIGN CLOSED
PRIME MOVER TYPE GASOLINE ENGINE
PRIME MOVER QUANTITY1
CYLINDER QUANTITY6
BRAKE POWER RATING225.0000 HORSEPOWER
BRAKE POWER RATING SPECIFIED RPM2800
ENGINE MANUFACTURER NAMECONTINENTAL MOTORS CORP
ENGINE MODEL NUMBERR6602-71
TRANSMISSION TYPE MANUAL
REVERSE SPEED QUANTITY1
OVERDRIVE NOT INCLUDED
FORWARD SPEED QUANTITY5
WINCH NOT INCLUDED
SUBMERSIBILITY NONSUBMERSIBLE
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICSAS DIFFERENTIATED BY CHEMICAL TANK QUANITY; CHEMICAL TANK CAPACITY; CHEMICAL TYPE
