NSN 4140-00-344-0365
Part Details | CENTRIFUGAL FAN IMPELLER
4140-00-344-0365 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: H65059CCW, H63762CCW, S38013120148PC2CCW, S3801-3120148PC2CCW, 4140-00-344-0365, 00-344-0365, 4140003440365, 003440365
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | JAN 01, 1963 | 00-344-0365 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

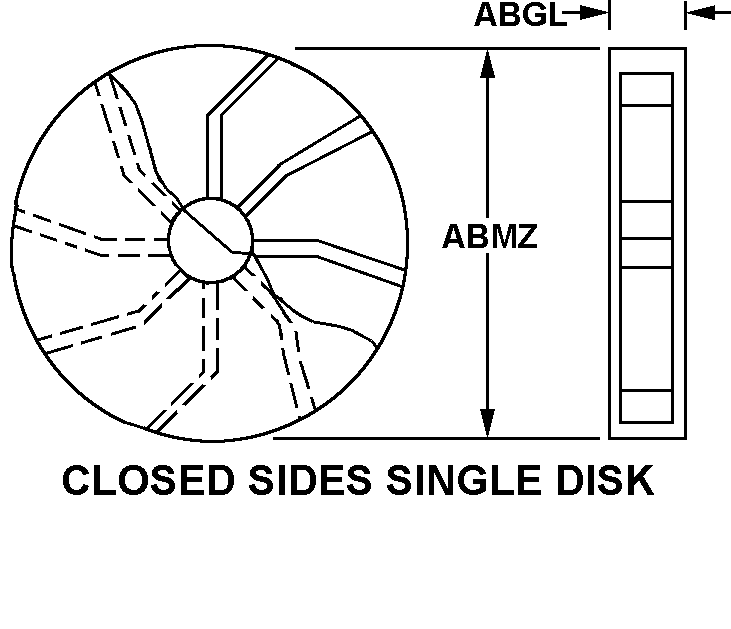

CLOSED SIDES SINGLE DISK
Cross Reference | NSN 4140-00-344-0365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H65059CCW | 07077 | HOWDEN BUFFALO INCDIV HOWDEN GYROL FLUID DRIVES |
| H63762CCW | 07077 | HOWDEN BUFFALO INCDIV HOWDEN GYROL FLUID DRIVES |
| S3801-3120148PC2CCW | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4140-00-344-0365
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED SIDES SINGLE DISK |
| WIDTH | 17.312 INCHES NOMINAL |
| DIAMETER | 41.750 INCHES NOMINAL |
| BLADE QUANTITY | 6 |
| ATTACHMENT METHOD | KEYWAY |
