NSN 4130-00-279-0736
Part Details | REFRIGERANT CHARGING AND TESTING MANIFOLD
4130-00-279-0736 An item consisting of one or more manually controlled valves, service, and cross sections. It is specifically designed for use in refrigeration or air conditioning systems to set expansion valves, purge air or overcharge out of the system and the like.
Alternate Parts: 877K, 877AK, 877A-K, 4130-00-279-0736, 00-279-0736, 4130002790736, 002790736
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | JAN 01, 1963 | 00-279-0736 | 13148 ( MANIFOLD, CHARGING AND TESTING, REFRIGERANT ) |
REFERENCE DRAWINGS & PICTURES

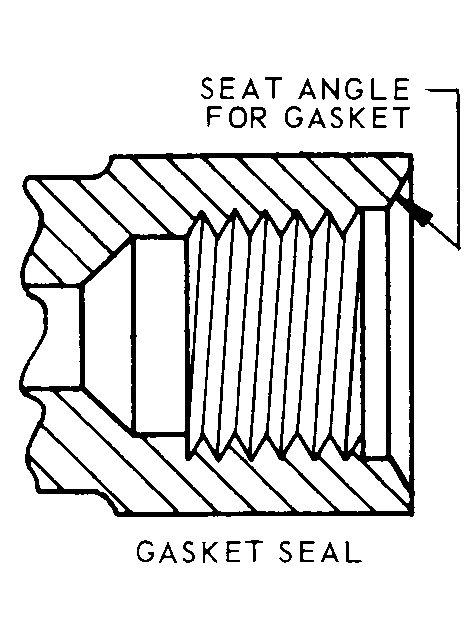

GASKET SEAL
Cross Reference | NSN 4130-00-279-0736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 877K | 58553 | SUPERIOR VALVE CO |
| 877A-K | 58553 | SUPERIOR VALVE CO |
Technical Data | NSN 4130-00-279-0736
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| VALVE QUANTITY | 2 |
| VALVE HANDLE | INCLUDED |
| HANDLE TYPE | HANDWHEEL |
| END CONNECTION QUANTITY | 2 |
| STYLE DESIGNATOR | GASKET SEAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.250-18 NPT |
