NSN 4130-00-142-0605

Part Details | PISTON PIN

4130-00-142-0605 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.

Alternate Parts: 21510, 4607, N8PC515B, N7PC515B, 4607, 21510, T515B, N9PC515B, 4130-00-142-0605, 00-142-0605, 4130001420605, 001420605

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
41JAN 01, 196300-142-060516414 ( PIN, PISTON )
REFERENCE DRAWINGS & PICTURES

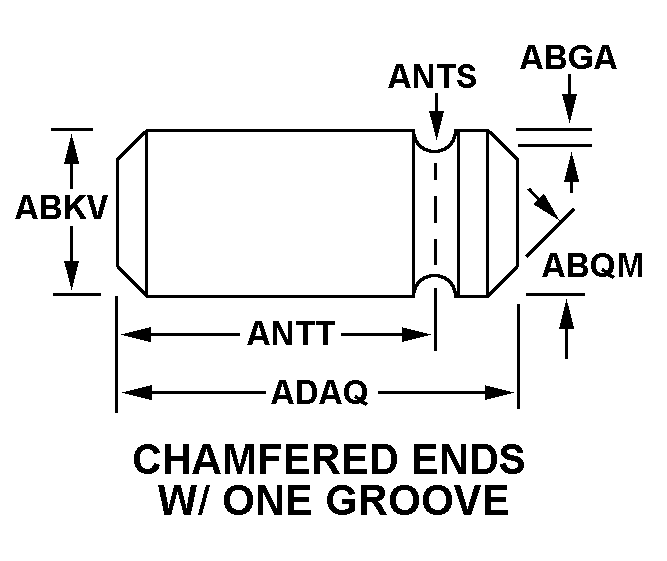

CHAMFERED ENDS W/ONE GROOVE

PIN,PISTON | 4130-00-142-0605, 001420605

INSIDE CHAMFER STRAIGHT-THRU BORE

PIN,PISTON | 4130-00-142-0605, 001420605
Cross Reference | NSN 4130-00-142-0605
Part Number Cage Code Manufacturer
2151093480BLISSFIELD MANUFACTURING COMPANY
460795535MARION DIVOF TECUMSEH PRODUCTS CO
N8PC515B59431TECUMSEH PRODUCTS CO
N7PC515B59431TECUMSEH PRODUCTS CO
460759431TECUMSEH PRODUCTS CO
2151059431TECUMSEH PRODUCTS CO
T515B59431TECUMSEH PRODUCTS CO
N9PC515B59431TECUMSEH PRODUCTS CO
Technical Data | NSN 4130-00-142-0605
Characteristic Specifications
METALLIC HARDNESS RATING63.0 MINIMUM ROCKWELL C
MATERIAL STEEL COMP 1016
MATERIAL DOCUMENT AND CLASSIFICATIONAFED STD 66$JGAAISI 1016$JGASAE 1016 2ND MATERIAL RESPONSE
CASEHARDENING INDICATOR CASEHARDENED
BODY STYLEA CHAMFERED ENDS W/ONE GROOVE
GROOVE DEPTH0.0310 INCHES NOMINAL
OUTSIDE DIAMETER0.49940 INCHES MINIMUM AND 0.49960 INCHES MAXIMUM
BODY LENGTH1.2970 INCHES MINIMUM AND 1.3070 INCHES MAXIMUM
RADIAL GROOVE RADIUS0.031 INCHES NOMINAL
DISTANCE FROM END TO GROOVE CENTER0.6560 INCHES NOMINAL
END CHAMFER ANGLE IN DEG30.0
BORE STYLE INSIDE CHAMFER STRAIGHT-THRU BORE
BORE DIAMETER0.1910 INCHES MINIMUM AND 0.1935 INCHES MAXIMUM
PLUG TYPE PIN RETAINING
PLUG MATERIAL BRASS
OVERALL LENGTH1.405 INCHES MINIMUM AND 1.431 INCHES MAXIMUM
