NSN 4130-00-106-5727
Part Details | LIQUID REFRIGERANT RECEIVER
4130-00-106-5727 An item used on the high pressure side of a refrigerant compressor as a reservoir for the liquid refrigerant and provides a positive seal to prevent the escape of uncondensed gases to the expansion values. Excludes ACCUMULATOR, REFRIGERANT.
Alternate Parts: 1085A76G02, 1085A76, 4130-00-106-5727, 00-106-5727, 4130001065727, 001065727
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | JUL 17, 1968 | 00-106-5727 | 15767 ( RECEIVER, LIQUID REFRIGERANT ) |
REFERENCE DRAWINGS & PICTURES

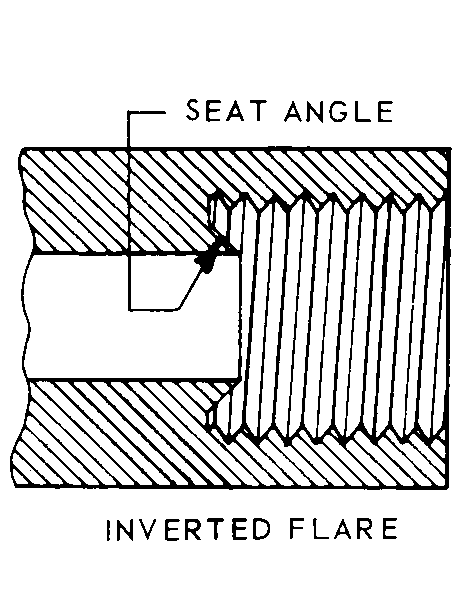

INVERTED FLARE
Cross Reference | NSN 4130-00-106-5727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1085A76G02 | 61510 | THERMO KING CORPORATIONDBA PHOENIX GLOBAL DISTIRBUTION. |
| 1085A76 | 61510 | THERMO KING CORPORATIONDBA PHOENIX GLOBAL DISTIRBUTION. |
Technical Data | NSN 4130-00-106-5727
| Characteristic | Specifications |
|---|---|
| MOUNTING POSITION | VERTICAL |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| OVERALL LENGTH | 15.000 INCHES NOMINAL |
| SHELL OUTSIDE DIAMETER | 6.000 INCHES |
| END CONNECTION TYPE AND LOCATION | UNTHREADED INTERNAL TUBE FIRST END |
| CONNECTION SPECIAL DESIGN | BULKHEAD |
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 7 INVERTED FLARE |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.125 INCHES NOMINAL |
| LEG LENGTH | 0.900 INCHES NOMINAL |
| RESTRICTION PASSAGE INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| SHUTOFF VALVE | NOT PROVIDED |
| EQUALIZING CONNECTION FEATURE | NOT INCLUDED |
| DRAIN CONNECTION | NOT INCLUDED |
| SAFETY PLUG | NOT INCLUDED |
| LIQUID LEVEL INDICATOR | NOT INCLUDED |
