NSN 4130-00-081-5399
Part Details | REFRIGERANT FILTER-DRIER
4130-00-081-5399 A device consisting of a metal cylinder filled or to be filled with a desiccant, placed in the liquid or suction line of a mechanical refrigeration system for the purpose of removing moisture and/or foreign matter. It may have an integral strainer.
Alternate Parts: 13214E3557, TIP0177828SEP71, TIP01778-28SEP71, 228404, 22840-4, ADK052, ADK-052, EK052, EK-052, ADK052, VV052, VV-052, H052, 02628173, 026-28173, R74D02, 052, C052, C-052, C052, C-052, S64, D124, 2554, 2-554, 2544, 2-544, 217522, 2-1752-2, 215722, 2-1572-2, 02054400, 02-0544-00, 24425, AH052F, AH-052F, C052, C-052, 4130-00-081-5399, 00-081-5399, 4130000815399, 000815399
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | DEC 15, 1967 | 00-081-5399 | 36434 ( FILTER-DRIER, REFRIGERANT ) |
REFERENCE DRAWINGS & PICTURES

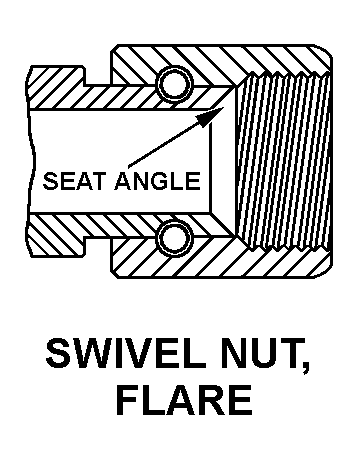

SWIVEL NUT, FLARE
Cross Reference | NSN 4130-00-081-5399
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13214E3557 | 97403 | CECOM LR CENTER |
| TIP01778-28SEP71 | 97403 | CECOM LR CENTER |
| 22840-4 | 79470 | DANA CORPWEATHERHEAD DIV |
| ADK-052 | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| EK-052 | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| ADK052 | D2250 | EMERSON ELECTRIC GMBH & COALCOCONTROLS DIVISION |
| VV-052 | 28193 | HENRY TECHNOLOGIES INC. |
| H052 | 28193 | HENRY TECHNOLOGIES INC. |
| 026-28173 | 66935 | JOHNSON CONTROLS NAVY SYSTEMS, LLC |
| R74D02 | 33334 | KEROTEST MANUFACTURING CORP. |
| 052 | 30756 | PARKER-HANNIFIN CORPORATIONDBA MOBILE CLIMATE SYSTEMS DIVISION |
| C-052 | 78462 | PARKER-HANNIFIN CORPORATIONDBA SPORLAN DIVISION |
| C-052 | 1U289 | R J MURRAY CO INCDIV R.J. MURRAY CO. |
| S64 | 97765 | REFRIGERATION RESEARCH INC |
| D124 | 97765 | REFRIGERATION RESEARCH INC |
| 2-554 | 49524 | SCOTSMAN INDUSTRIES INCDIV SCOTSMAN ICE SYSTEMS |
| 2-544 | 49524 | SCOTSMAN INDUSTRIES INCDIV SCOTSMAN ICE SYSTEMS |
| 2-1752-2 | 49524 | SCOTSMAN INDUSTRIES INCDIV SCOTSMAN ICE SYSTEMS |
| 2-1572-2 | 49524 | SCOTSMAN INDUSTRIES INCDIV SCOTSMAN ICE SYSTEMS |
| 02-0544-00 | 49524 | SCOTSMAN INDUSTRIES INCDIV SCOTSMAN ICE SYSTEMS |
| 24425 | 96239 | SUB ZERO FREEZER INC |
| AH-052F | 58727 | VIRGINIA CHEMICALS INC |
| C-052 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 4130-00-081-5399
| Characteristic | Specifications |
|---|---|
| DESICCANT TYPE | W ANY ACCEPTABLE |
| UNIT TYPE | EK ANY ACCEPTABLE |
| SHAPE | STRAIGHT |
| DESICCANT CAPACITY | 5.000 CUBIC INCHES |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| SHELL MATERIAL | STEEL |
| SHELL SURFACE TREATMENT | LACQUER |
| SHELL LENGTH | 2.938 INCHES NOMINAL |
| SHELL DIAMETER | 2.328 INCHES NOMINAL |
| CONNECTION SPECIAL DESIGN | UNION |
| STYLE DESIGNATOR | 0 SWIVEL NUT, FLARE |
| SEAT ANGLE | 45.0 DEGREES |
| LEG LENGTH | 0.840 INCHES |
| FEATURES PROVIDED | INTEGRAL STRAINER |
| UNPACKAGED UNIT WEIGHT | 0.750 POUNDS |
