NSN 4030-00-809-6702

Part Details | S CHAIN HOOK

4030-00-809-6702 A wire formed in the shape of the letter S, used to attach wire chain to other objects.

Alternate Parts: 10914369, 4030-00-809-6702, 00-809-6702, 4030008096702, 008096702

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
40AUG 09, 196800-809-670202634 ( HOOK, CHAIN, S )
REFERENCE DRAWINGS & PICTURES

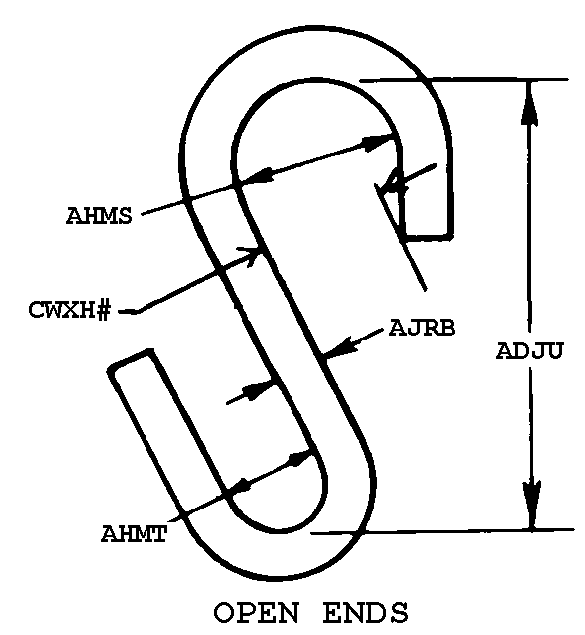

OPEN ENDS

HOOK,CHAIN,S | 4030-00-809-6702, 008096702
Cross Reference | NSN 4030-00-809-6702
Part Number Cage Code Manufacturer
1091436919207U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM
Technical Data | NSN 4030-00-809-6702
Characteristic Specifications
MATERIAL STEEL
SURFACE TREATMENT CADMIUM
STYLE DESIGNATOR OPEN ENDS
INSIDE LENGTH2.250 INCHES NOMINAL
UPPER LOOP INSIDE DIAMETER0.750 INCHES NOMINAL
LOWER LOOP INSIDE DIAMETER0.750 INCHES NOMINAL
MATERIAL DIAMETER0.375 INCHES NOMINAL
