NSN 4030-00-764-1284
Part Details | SWIVEL AND LINK ASSEMBLY
4030-00-764-1284 A device consisting of two parts, which are mounted on a common axis so as to permit a relative rotation between the parts, having one or more fixed or detachable items attached to one or both ends of the device. Does not include items with chain.
Alternate Parts: 65C12057, 4030-00-764-1284, 00-764-1284, 4030007641284, 007641284
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAR 06, 1968 | 00-764-1284 | 11088 ( SWIVEL AND LINK ASSEMBLY ) |

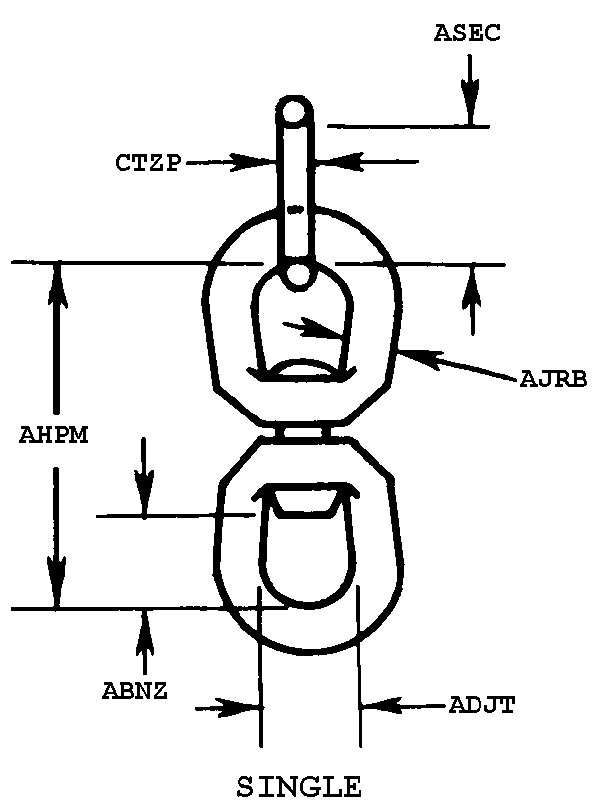

REFERENCE DRAWINGS & PICTURES
SINGLE
Cross Reference | NSN 4030-00-764-1284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65C12057 | 18894 | AIR ARMAMENT CENTER/ EN |
Technical Data | NSN 4030-00-764-1284
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | SINGLE |
| FEATURES PROVIDED | REMOVABLE LINK |
| SPECIAL FEATURES | SWIVEL AND LINK ASSEMBLIES ARE USED TO ARM AIR-TO-SURFACE BOMBS. MUST WITHSTAND A MINIMUM FULL FORCE. IF NOT ACHIEVED, IT WILL CAUSE A MALFUNCTION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
