NSN 4030-00-740-9864
Part Details | WIRE ROPE DRUM CLAMP WEDGE
4030-00-740-9864 A solid metallic item, longer in relation to its width and thickness, with flat parallel sides and one edge tapered along its entire length. One edge is grooved and the other edge is rounded to join a counterpart. When wedged into position it clamps the end of wire rope to a drum. Excludes WEDGE, WIRE ROPE SOCKET.
Alternate Parts: 1682N2, KC9303, 113563R1, 113563R1, 915601, 7409864, HC75, HC75, 4030-00-740-9864, 00-740-9864, 4030007409864, 007409864
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-740-9864 | 22196 ( WEDGE, DRUM CLAMP, WIRE ROPE ) |
REFERENCE DRAWINGS & PICTURES

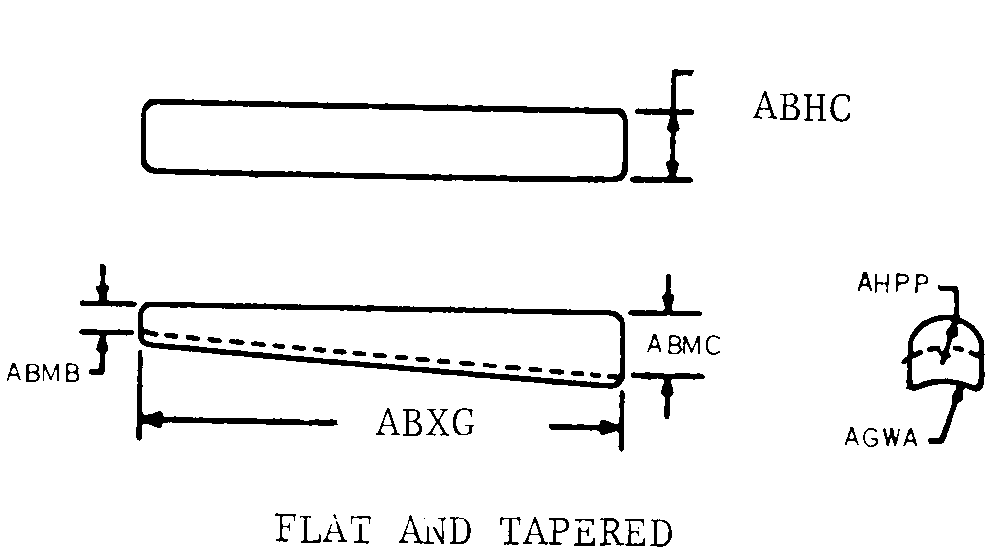

FLAT AND TAPERED
Cross Reference | NSN 4030-00-740-9864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1682N2 | 56442 | DIAMOND REO TRUCK CO |
| KC9303 | 56442 | DIAMOND REO TRUCK CO |
| 113563R1 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 113563R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 915601 | 58275 | SASCO INC CANADIAN DIV |
| 7409864 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| HC75 | 40152 | VME AMERICAS INCSUB OF VME GROUP N V |
| HC75 | 1X0J7 | VOLVO CONSTRUCTION EQUIPMENT NORTHAMERICA, LLC |
Technical Data | NSN 4030-00-740-9864
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE |
| STYLE DESIGNATOR | FLAT AND TAPERED |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| MINOR THICKNESS | 0.250 INCHES NOMINAL |
| MAJOR THICKNESS | 0.562 INCHES NOMINAL |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| GROOVE RADIUS | 0.438 INCHES NOMINAL |
| OUTER RADIUS | 0.125 INCHES NOMINAL |
