NSN 4030-00-715-2760
Part Details | ANGLE CHAIN FASTENER
4030-00-715-2760 A strip of metal with a hole at either end. One is for mounting on flat surface, the other end is elevated upward for attaching the end termination(s) of another item.
Alternate Parts: 4030A0003, MBEU321SV, 4030-00-715-2760, 00-715-2760, 4030007152760, 007152760
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-715-2760 | 07726 ( CHAIN FASTENER, ANGLE ) |

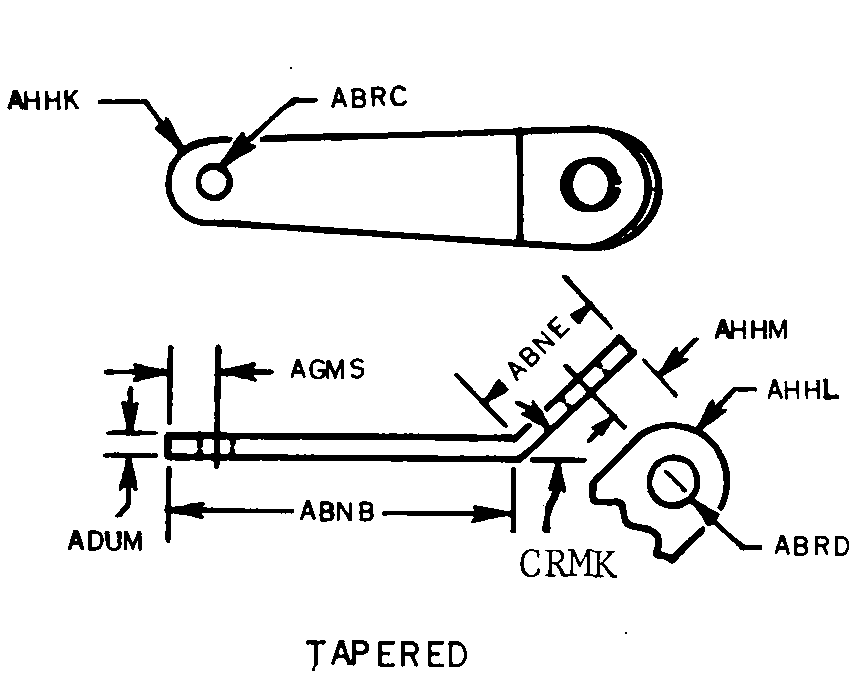

REFERENCE DRAWINGS & PICTURES
TAPERED
Cross Reference | NSN 4030-00-715-2760
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4030A0003 | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
| MBEU321SV | U1604 | MARTIN BAKER AIRCRAFT CO LTDDBA MARTIN-BAKER |
Technical Data | NSN 4030-00-715-2760
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 32 SWG MS,FSCM U1604 MFR REF SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | TAPERED |
| FIRST FLAT LENGTH | 0.375 INCHES NOMINAL |
| SECOND FLAT LENGTH | 0.281 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.062 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.187 INCHES NOMINAL |
| OVERALL THICKNESS | 0.028 INCHES NOMINAL |
| HOLE CENTER TO FLAT END LENGTH | 0.093 INCHES NOMINAL |
| FLAT END RADIUS | 0.093 INCHES NOMINAL |
| ELEVATED END RADIUS | 0.188 INCHES NOMINAL |
| HOLE CENTER TO ELEVATED END LENGTH | 0.188 INCHES NOMINAL |
| ANGLE | 45.0 DEGREES NOMINAL |
