NSN 4030-00-473-3357
Part Details | SHACKLE
4030-00-473-3357 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Alternate Parts: 54749H459PCE3, 547-49H459PCE3, 345295PCE3, 345-295PCE3, 345285PCF3, 345-285PCF3, 4030-00-473-3357, 00-473-3357, 4030004733357, 004733357
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-473-3357 | 11074 ( SHACKLE ) |
REFERENCE DRAWINGS & PICTURES

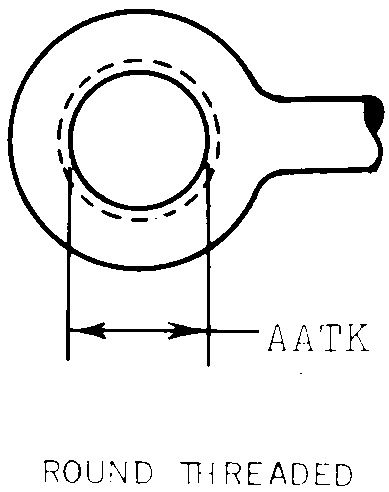

ROUND THREADED
CHAIN
Cross Reference | NSN 4030-00-473-3357
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 547-49H459PCE3 | 14921 | CRAMP SHIPBUILDING AND DRYDOCK CO |
| 345-295PCE3 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 345-285PCF3 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
Technical Data | NSN 4030-00-473-3357
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | CHAIN |
| OPENING WIDTH | 0.625 INCHES NOMINAL |
| INSIDE LENGTH | 0.655 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.187 INCHES NOMINAL |
| EYELET STYLE | ROUND THREADED |
| EYE INSIDE DIAMETER | 0.190 INCHES NOMINAL |
