NSN 4030-00-330-6658
Part Details | WIRE ROPE SOCKET
4030-00-330-6658 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).
Alternate Parts: 4035891, 403589-1, 4030-00-330-6658, 00-330-6658, 4030003306658, 003306658
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-330-6658 | 02645 ( SOCKET, WIRE ROPE ) |
REFERENCE DRAWINGS & PICTURES

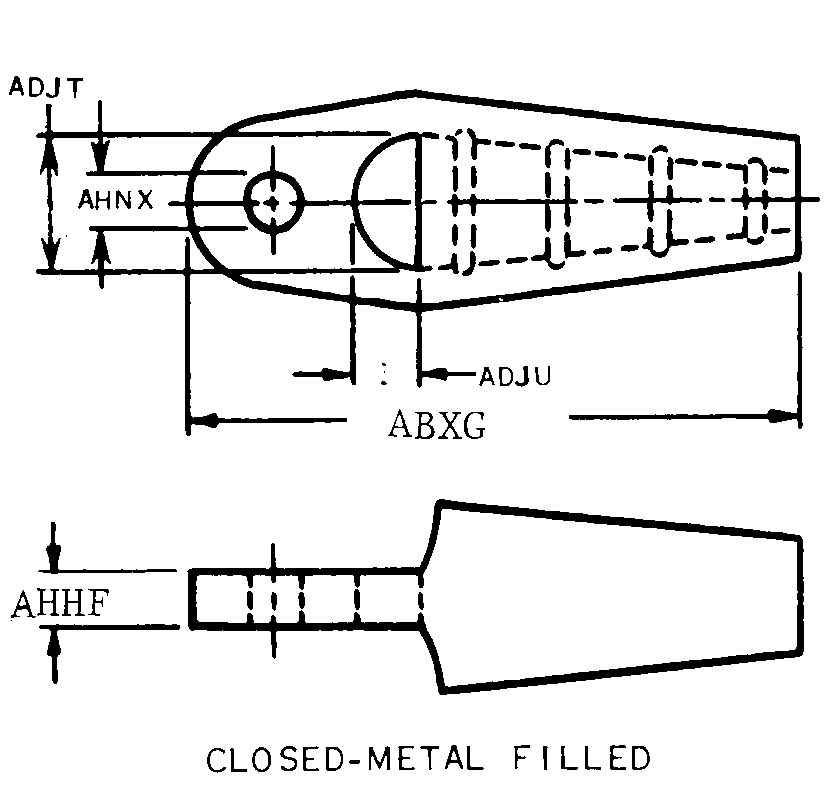

CLOSED-METAL FILLED
Cross Reference | NSN 4030-00-330-6658
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 403589-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 4030-00-330-6658
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | CLOSED-METAL FILLED |
| OVERALL LENGTH | 10.188 INCHES NOMINAL |
| INSIDE WIDTH | 2.500 INCHES NOMINAL |
| INSIDE LENGTH | 2.250 INCHES NOMINAL |
| TONGUE THICKNESS | 0.989 INCHES MINIMUM AND 0.992 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 1.250 INCHES MINIMUM AND 1.252 INCHES MAXIMUM |
| ACCOMMODATED MATERIAL DIAMETER | 1.125 INCHES NOMINAL |
