NSN 4030-00-273-2882
Part Details | EYE AND LINK SWIVEL
4030-00-273-2882 A round or oval part and either a D-shaped or a heart-shaped part mounted on a common axis so as to permit relative rotation between the parts.
Alternate Parts: 8051567671, 805-1567671, 4030-00-273-2882, 00-273-2882, 4030002732882, 002732882
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-273-2882 | 11084 ( SWIVEL, EYE AND LINK ) |
REFERENCE DRAWINGS & PICTURES

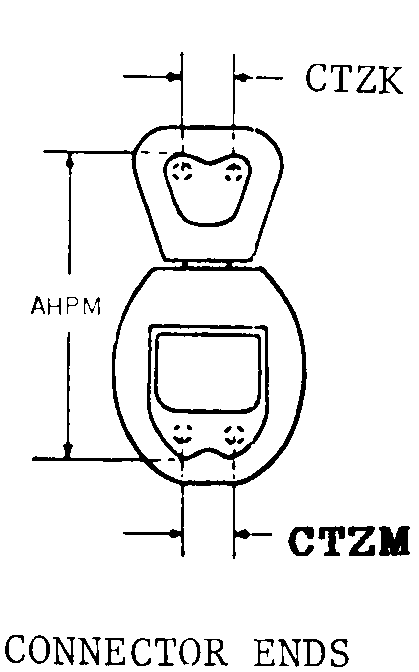

CONNECTOR ENDS
Cross Reference | NSN 4030-00-273-2882
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 805-1567671 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4030-00-273-2882
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | CONNECTOR ENDS |
| REACH LENGTH | 12.218 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN UPPER CONNECTIONS | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOWER CONNECTIONS | 2.250 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 1.250 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE ACCOMMODATED MATERIAL DIA |
