NSN 4030-00-267-7076
Part Details | SHACKLE
4030-00-267-7076 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Alternate Parts: MILC18295, 4030-00-267-7076, 00-267-7076, 4030002677076, 002677076
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-267-7076 | 11074 ( SHACKLE ) |
REFERENCE DRAWINGS & PICTURES

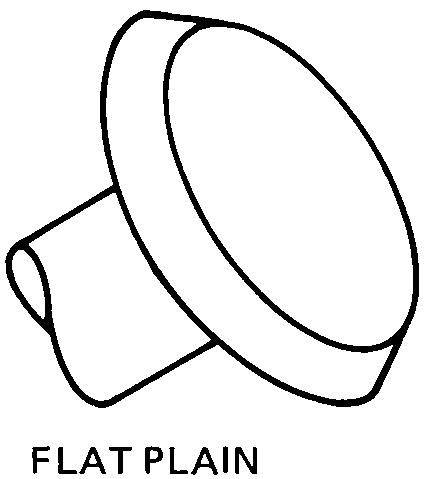

FLAT PLAIN
CHAIN
Cross Reference | NSN 4030-00-267-7076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC18295 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4030-00-267-7076
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | CHAIN |
| OPENING WIDTH | 3.250 INCHES NOMINAL |
| INSIDE LENGTH | 13.875 INCHES NOMINAL |
| MATERIAL DIAMETER | 2.813 INCHES NOMINAL |
| BREAKING STRENGTH | 200000.0 POUNDS NOMINAL |
| CLOSURE HEAD STYLE | FLAT PLAIN |
| END CONDITION | PLAIN |
| LOCKING DEVICE TYPE | RIVET |
| FEATURES PROVIDED | FORELOCK PINHOLE |
| SPECIAL FEATURES | W/RD CROSS-SECTIONAL SHAPE CLOSURE PIN,2.250 IN. DIA |
| NONDEFINITIVE SPEC/STD DATA | 2 GROUP |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY CHAIN SIZE |
