NSN 4030-00-266-0061
Part Details | ROPE THIMBLE
4030-00-266-0061 A metallic or nonmetallic ring, loop, solid plate, casting or moulding, formed with a grooved outer edge to fit within an eye splice; or maybe a crescent-shaped hollow tube. It is generally used in multiple leg slings to protect from chafing.
Alternate Parts: FFT276, 4030-00-266-0061, 00-266-0061, 4030002660061, 002660061
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-266-0061 | 11234 ( THIMBLE, ROPE ) |
REFERENCE DRAWINGS & PICTURES

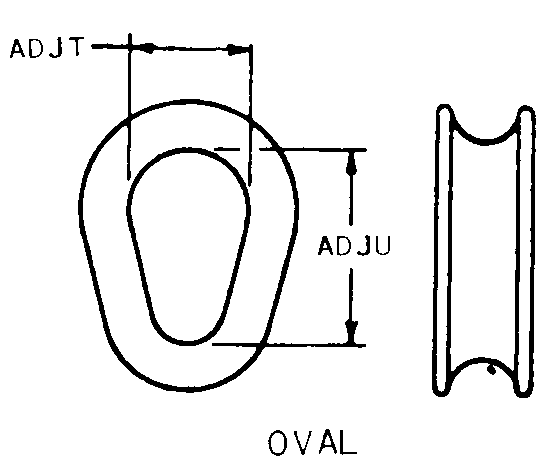

OVAL
Cross Reference | NSN 4030-00-266-0061
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFT276 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4030-00-266-0061
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | OVAL |
| INSIDE WIDTH | 5.188 INCHES NOMINAL |
| INSIDE LENGTH | 8.625 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 3.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
