NSN 4030-00-184-9820
Part Details | WIRE ROPE SOCKET
4030-00-184-9820 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).
Alternate Parts: MILS21433, 4030-00-184-9820, 00-184-9820, 4030001849820, 001849820
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-184-9820 | 02645 ( SOCKET, WIRE ROPE ) |
REFERENCE DRAWINGS & PICTURES

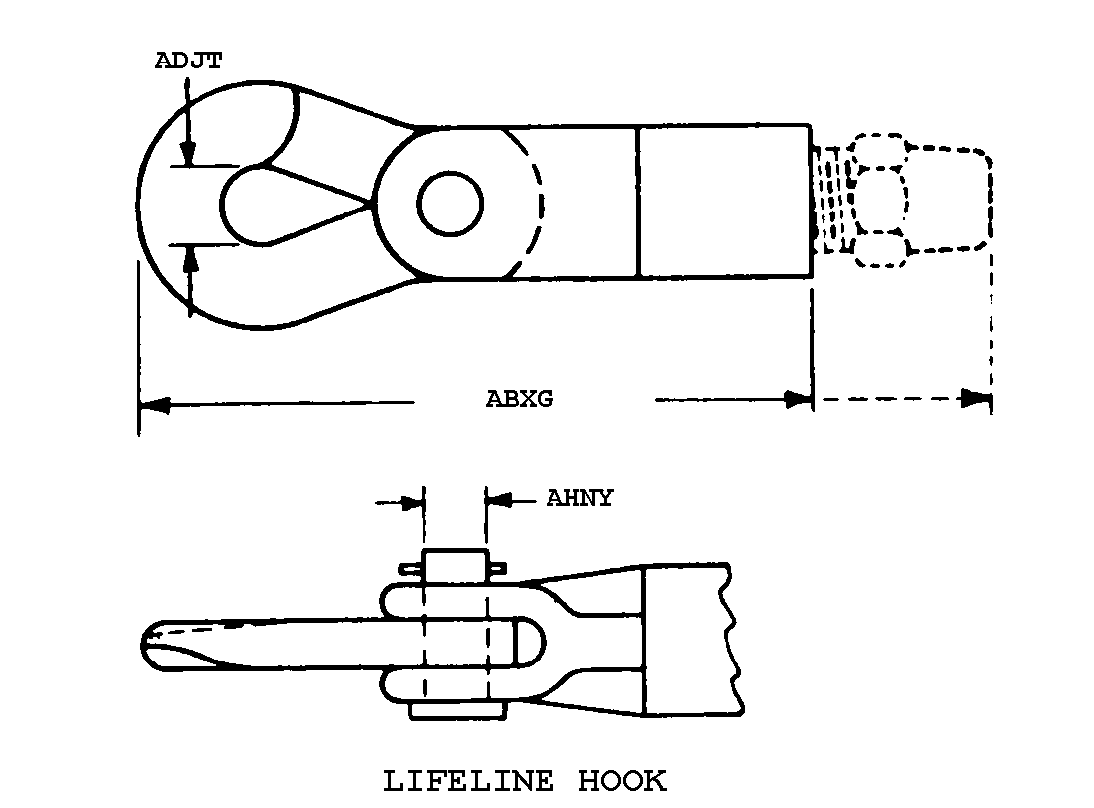

LIFELINE HOOK
Cross Reference | NSN 4030-00-184-9820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILS21433 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4030-00-184-9820
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | LIFELINE HOOK |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| INSIDE WIDTH | 0.750 INCHES NOMINAL |
| BOLT DIAMETER | 0.625 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | WEDGE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND J CLASS |
