NSN 4030-00-104-9081
Part Details | WIRE ROPE SOCKET
4030-00-104-9081 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).
Alternate Parts: 8051649890PC6, 805-1649890PC6, 4030-00-104-9081, 00-104-9081, 4030001049081, 001049081
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
40 | JUN 24, 1968 | 00-104-9081 | 02645 ( SOCKET, WIRE ROPE ) |
REFERENCE DRAWINGS & PICTURES

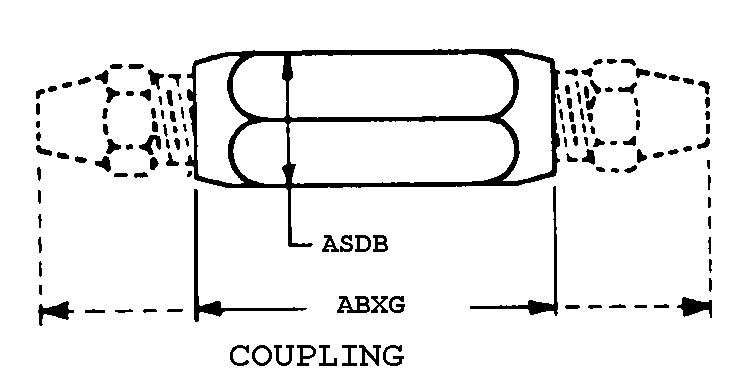

COUPLING
Cross Reference | NSN 4030-00-104-9081
Part Number | Cage Code | Manufacturer |
---|---|---|
805-1649890PC6 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4030-00-104-9081
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | CADMIUM |
STYLE DESIGNATOR | COUPLING |
ACCOMMODATED MATERIAL DIAMETER | 0.875 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
FEATURES PROVIDED | WEDGE |
