NSN 4030-00-018-7602
Part Details | SHACKLE
4030-00-018-7602 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Alternate Parts: MS201158, MS20115-8, 4030-00-018-7602, 00-018-7602, 4030000187602, 000187602
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | APR 25, 1967 | 00-018-7602 | 11074 ( SHACKLE ) |

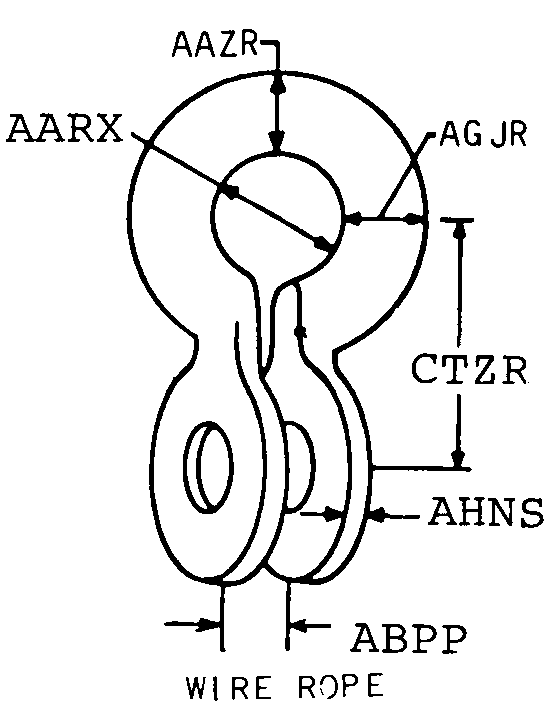

REFERENCE DRAWINGS & PICTURES
ROUND PLAIN
WIRE ROPE
Cross Reference | NSN 4030-00-018-7602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20115-8 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 4030-00-018-7602
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | WIRE ROPE |
| INSIDE DIAMETER | 0.438 INCHES MINIMUM AND 0.454 INCHES MAXIMUM |
| MAJOR DIAMETER | 0.375 INCHES NOMINAL |
| OPENING WIDTH | 0.310 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| MINOR DIAMETER | 0.343 INCHES NOMINAL |
| LEG END THICKNESS | 0.187 INCHES NOMINAL |
| DISTANCE FROM BAIL CENTER TO HOLE CENTER | 0.984 INCHES MINIMUM AND 1.016 INCHES MAXIMUM |
| BREAKING STRENGTH | 7000.0 POUNDS NOMINAL |
| EYELET STYLE | ROUND PLAIN |
| EYE INSIDE DIAMETER | 0.375 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
