NSN 4010-00-400-7146
Part Details | WIRE ROPE
4010-00-400-7146 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: 11641133, 4010-00-400-7146, 00-400-7146, 4010004007146, 004007146
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAR 05, 1969 | 00-400-7146 | 30295 ( ROPE, WIRE ) |
REFERENCE DRAWINGS & PICTURES

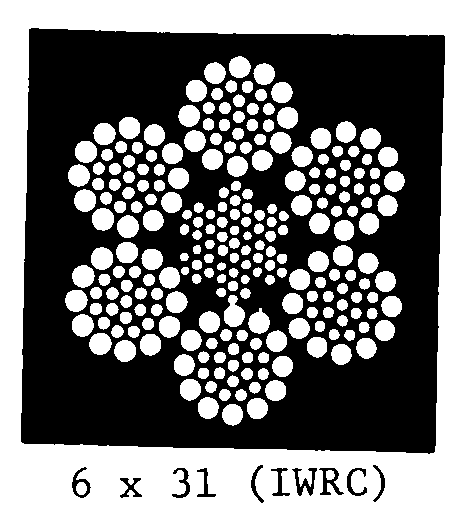

6 X 3 (IWRC)
Cross Reference | NSN 4010-00-400-7146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11641133 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4010-00-400-7146
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | 6 X 3 (IWRC) |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 296.166 FEET MINIMUM AND 297.166 FEET MAXIMUM |
| BREAKING STRENGTH | 55800.000 POUNDS NOMINAL |
