NSN 4010-00-386-2864
Part Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-386-2864 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Alternate Parts: D734, D734, 4010-00-386-2864, 00-386-2864, 4010003862864, 003862864
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1961 | 00-386-2864 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES

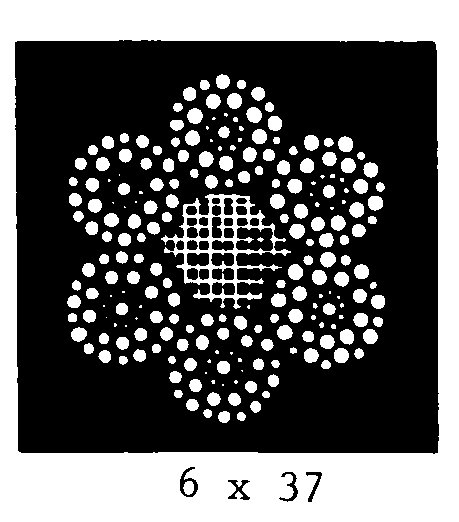

6 X 37
Cross Reference | NSN 4010-00-386-2864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D734 | 59690 | KOEHRING COLORAIN DIV |
| D734 | 8E499 | KOEHRING CRANES AND EXCAVATORS INCSUB OF NORTHWEST ENGINEERING CO |
Technical Data | NSN 4010-00-386-2864
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 37 |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 7.948 FEET MINIMUM AND 7.969 FEET MAXIMUM |
| SPECIAL FEATURES | TERMINAL ATTACHMENT EACH END,0.369 IN. MIN,0.374 IN. MAX DIA,3.312 IN. O/A LG,0.375-24 UNF THD SIZE,2.875 IN. THD LG |
