NSN 4010-00-179-3664
Part Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-179-3664 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Alternate Parts: 2590001793664, 1225310519, 12253105-19, 10899395, 4010-00-179-3664, 00-179-3664, 4010001793664, 001793664
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 20, 1969 | 00-179-3664 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES

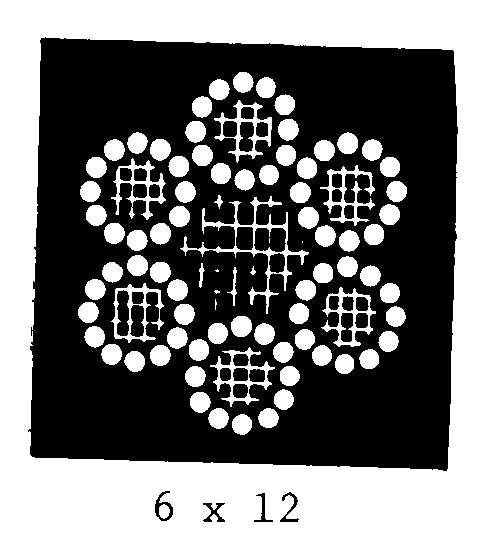

6 X 12
Cross Reference | NSN 4010-00-179-3664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2590001793664 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 12253105-19 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 10899395 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4010-00-179-3664
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | 6 X 12 |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 357.000 FEET NOMINAL |
| BREAKING STRENGTH | 24960.0 POUNDS NOMINAL |
| END CONDITIONING METHOD | SEIZED |
