NSN 4010-00-133-6372
Part Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-133-6372 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Alternate Parts: 4406462, 44064-62, 44064D62, 44064D62, 1840, 44064D62, 4010-00-133-6372, 00-133-6372, 4010001336372, 001336372
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | AUG 06, 1969 | 00-133-6372 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES

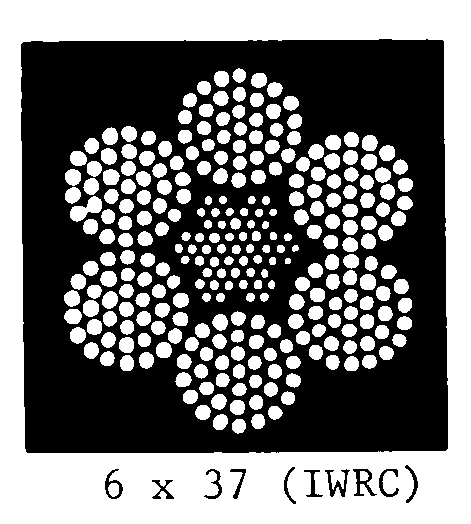

6 X 37 (IWRC)
Cross Reference | NSN 4010-00-133-6372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44064-62 | 00462 | GOODRICH CORPORATIONDBA TRW LUCAS AEROSPACE |
| 44064D62 | 00462 | GOODRICH CORPORATIONDBA TRW LUCAS AEROSPACE |
| 44064D62 | 3HRL4 | GOODRICH CORPORATIONDIV GOODRICH CORPORATION, SENSORS |
| 1840 | 86364 | MACWHYTE CODIV OF AMSTED INDUSTRIES INC |
| 44064D62 | 82402 | TRIUMPH GEAR SYSTEMS, INC.DBA TRIUMPH GEAR SYSTEMS- PARK CITY |
Technical Data | NSN 4010-00-133-6372
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | 6 X 37 (IWRC) |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 220.000 FEET NOMINAL |
| BREAKING STRENGTH | 32500.000 POUNDS MINIMUM |
