NSN 3990-01-565-2676
Part Details | TOTE BOX
3990-01-565-2676 A reusable box, usually rectangular in shape which may have a lid. It may be collapsible and capable of being nested and/or stacked. It is not compartmented but may have dividers or insert tray(s). It is designed for manual material handling operations to facilitate the collection and movement of miscellaneous items within warehouses, maintenance shops, and stores. Excludes BOX (1), SHIPPING. See also BOX (3), SMALL PARTS.
Alternate Parts: 3533253411, 3990-01-565-2676, 01-565-2676, 3990015652676, 015652676
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | JUL 17, 2008 | 01-565-2676 | 27388 ( BOX, TOTE ) |

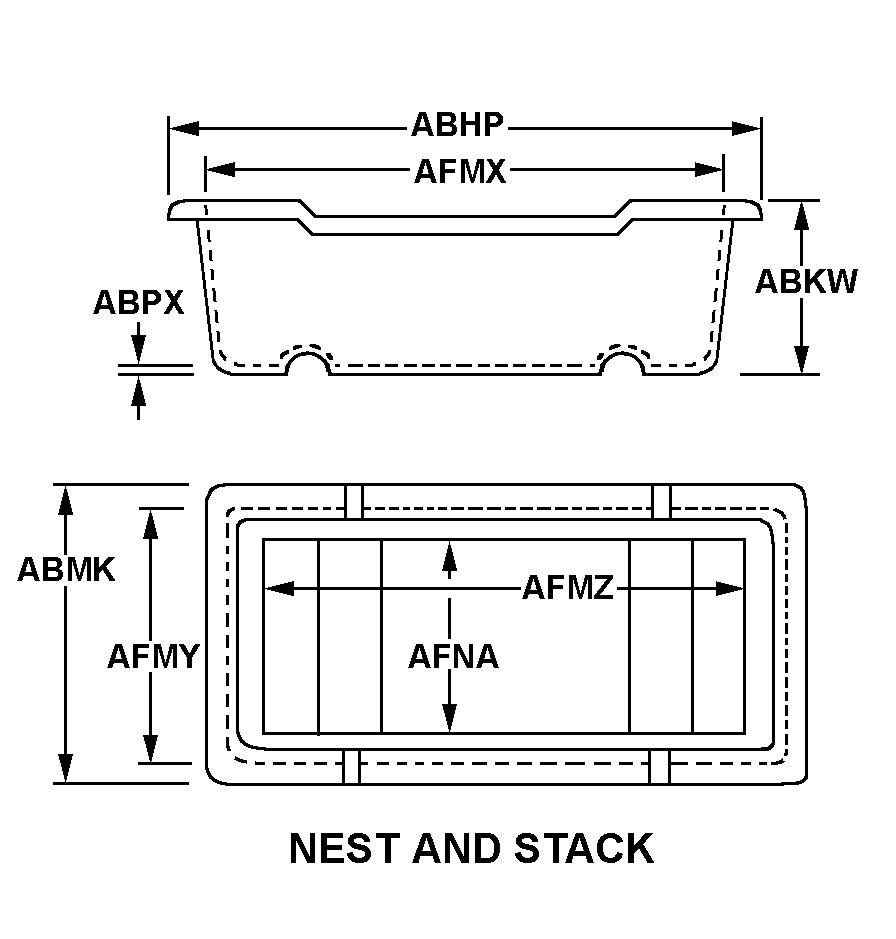

REFERENCE DRAWINGS & PICTURES
NEST AND STACK
Cross Reference | NSN 3990-01-565-2676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3533253411 | 1LBE8 | AVM INC |
Technical Data | NSN 3990-01-565-2676
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NEST AND STACK |
| OVERALL LENGTH | 600.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 250.0 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 400.0 MILLIMETERS NOMINAL |
| MATERIAL | PLASTIC |
| EXTERIOR COLOR | BLUE |
| INTERIOR COLOR | BLUE |
| HANDLING FACILITY TYPE | RECESSED HANDLES |
| STACKING FEATURE | YES |
| SPECIAL FEATURES | CONFIGURATION-TOTE BOX |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | EURO BOX |
