NSN 3940-00-141-7197
Part Details | TACKLE BLOCK
3940-00-141-7197 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Alternate Parts: MILB12582, MIL-B-12582, 3940-00-141-7197, 00-141-7197, 3940001417197, 001417197
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | JAN 01, 1963 | 00-141-7197 | 06117 ( BLOCK, TACKLE ) |

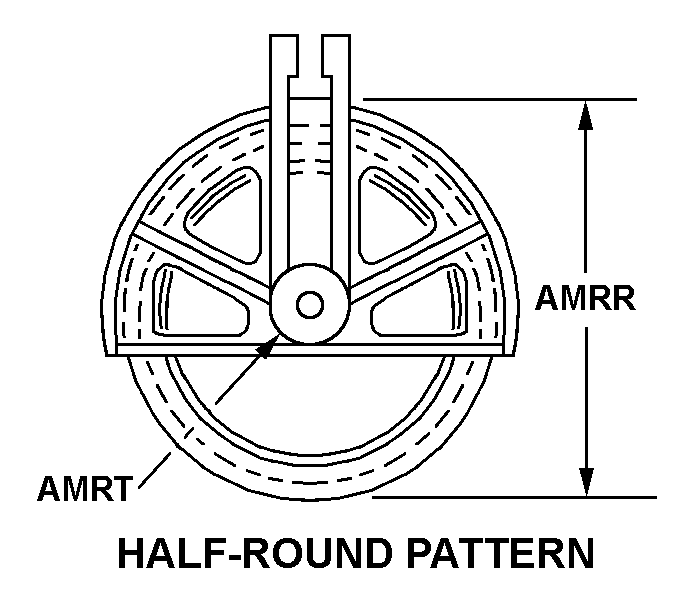

REFERENCE DRAWINGS & PICTURES
CHAIN SHACKLE
HALF-ROUND PATTERN
Cross Reference | NSN 3940-00-141-7197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-B-12582 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 3940-00-141-7197
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF-ROUND PATTERN |
| SHEAVE OUTSIDE DIAMETER | 12.000 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT AND LOCATION | PAINTED OVERALL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | ROLLER |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.875 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| ATTACHMENT STYLE | CHAIN SHACKLE |
| MAXIMUM LOAD RATING | 13000.0 POUNDS |
| SPECIAL FEATURES | SHEAVE WIDTH 2.500 IN. |
